What we know about the measurement:

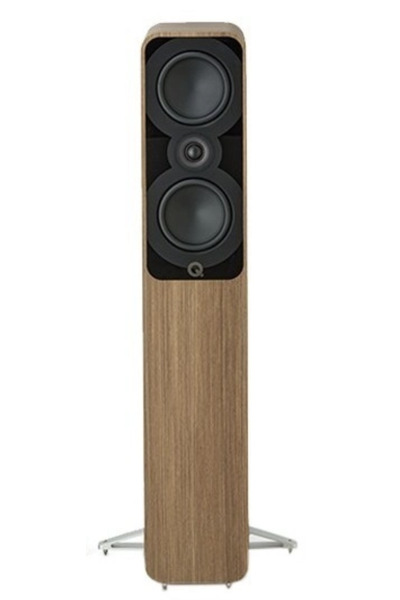

Q Acoustics 5040 is a passive floorstanders speaker that cost around 1250USD for a pair .

  • Quality of the measurement data is high .
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 89.3dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
  • -3dB (resp. -6db) point v.s. reference is at 196.3Hz (resp. 74.7Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.5dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.57 and would be 5.18 with a perfect subwoofer.
      • Details: NBD: ON 0.598, LW 0.495, SP 0.389, PIR 0.407; SM: SP0.62, PIR0.092; LFQ 0.713, LFX 58Hz
    • Tonality (Preference) Score is 5.97 with an EQ and would be 7.78 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.45, LW 0.36, SP 0.282, PIR 0.264; SM: SP0.923, PIR0.869; LFQ 0.741, LFX 38Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 91.5 dB
    • Impedance 6 Ohm
    • SPL
      • peak: 122 dB
    • Size
      • Width 293mm
      • Height 967mm
      • Depth 361 mm)
    • Weight 18 kg
