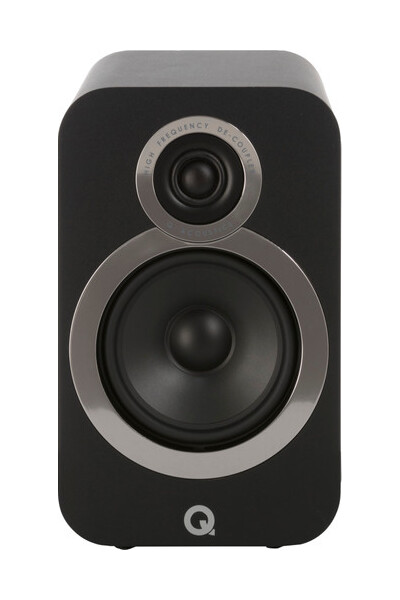

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 86.6dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
-
-3dB (resp. -6db) point v.s. reference is at 82.0Hz (resp. 60.1Hz).
-
Reference level is normalised to -0.0dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 3.0dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-60.0°, 50.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-20.0°, 30.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 3.91
and would be 6.43 with a
perfect subwoofer.
- Details:
NBD: ON 0.481,
LW 0.466, SP
0.481, PIR
0.436; SM:
SP0.751,
PIR0.541; LFQ
0.451, LFX 55Hz
- Tonality (Preference) Score is 6.07
with an EQ and would be 8.21 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.363,
LW 0.312, SP
0.319, PIR
0.244; SM:
SP0.949,
PIR0.934; LFQ 0.597, LFX 45Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -4.8dB.
|
| Type |
Freq |
Q |
Gain |
| 5 |
99.0 |
1.01 |
2.97 |
| 3 |
309.0 |
0.27 |
-2.98 |
| 3 |
604.0 |
2.96 |
2.99 |
| 3 |
1394.0 |
2.01 |
-2.9 |
| 3 |
1762.0 |
2.55 |
2.91 |
| 3 |
4803.0 |
2.92 |
-2.81 |
| 3 |
6069.0 |
1.49 |
-2.41 |
| 3 |
11077.0 |
0.89 |
-2.89 |
| 5 |
14473.0 |
1.03 |
2.04 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -3.5dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
305.0 |
3.0 |
-0.2 |
| 3 |
362.0 |
12.0 |
1.5 |
| 3 |
381.0 |
12.0 |
-1.2 |
| 3 |
536.0 |
18.0 |
0.5 |
| 3 |
651.0 |
5.0 |
9.0 |
| 3 |
676.0 |
5.0 |
-8.1 |
| 3 |
992.0 |
4.077 |
-2.3 |
| 3 |
1032.0 |
1.0 |
1.5 |
| 3 |
1349.0 |
4.998 |
-3.2 |
| 3 |
1560.0 |
10.0 |
-0.4 |
| 3 |
2087.0 |
1.018 |
2.9 |
| 3 |
2095.0 |
15.0 |
-1.1 |
| 3 |
2230.0 |
4.0 |
0.7 |
| 3 |
2390.0 |
17.0 |
-1.0 |
| 3 |
4852.0 |
1.733 |
-3.2 |
| 3 |
5650.0 |
6.0 |
0.6 |
| 3 |
6750.0 |
8.0 |
-1.0 |
| 3 |
7720.0 |
8.0 |
0.9 |
| 3 |
10101.0 |
1.0 |
-1.5 |
| 3 |
12900.0 |
7.0 |
-0.4 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.5 |
| 3 |
100.0 |
2.14 |
0.25 |
| 3 |
160.0 |
2.14 |
-0.25 |
| 3 |
250.0 |
2.14 |
-0.25 |
| 3 |
400.0 |
2.14 |
-0.25 |
| 3 |
630.0 |
2.14 |
0.25 |
| 3 |
1000.0 |
2.14 |
-0.5 |
| 3 |
1600.0 |
2.14 |
-0.25 |
| 3 |
2500.0 |
2.14 |
0.0 |
| 3 |
4000.0 |
2.14 |
-0.5 |
| 3 |
6300.0 |
2.14 |
-0.5 |
| 3 |
10000.0 |
2.14 |
-0.5 |
| 3 |
16000.0 |
2.14 |
-0.5 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.8dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.5 |
| 3 |
31.0 |
4.32 |
0.5 |
| 3 |
40.0 |
4.32 |
0.5 |
| 3 |
50.0 |
4.32 |
0.5 |
| 3 |
63.0 |
4.32 |
0.5 |
| 3 |
80.0 |
4.32 |
0.5 |
| 3 |
100.0 |
4.32 |
0.25 |
| 3 |
125.0 |
4.32 |
0.0 |
| 3 |
160.0 |
4.32 |
-0.25 |
| 3 |
200.0 |
4.32 |
-0.25 |
| 3 |
250.0 |
4.32 |
-0.25 |
| 3 |
315.0 |
4.32 |
-0.25 |
| 3 |
400.0 |
4.32 |
-0.25 |
| 3 |
500.0 |
4.32 |
0.0 |
| 3 |
630.0 |
4.32 |
0.25 |
| 3 |
800.0 |
4.32 |
-0.25 |
| 3 |
1000.0 |
4.32 |
-0.5 |
| 3 |
1250.0 |
4.32 |
-0.5 |
| 3 |
1600.0 |
4.32 |
-0.25 |
| 3 |
2000.0 |
4.32 |
0.0 |
| 3 |
2500.0 |
4.32 |
0.0 |
| 3 |
3150.0 |
4.32 |
-0.25 |
| 3 |
4000.0 |
4.32 |
-0.5 |
| 3 |
5000.0 |
4.32 |
-0.75 |
| 3 |
6300.0 |
4.32 |
-0.5 |
| 3 |
8000.0 |
4.32 |
-0.25 |
| 3 |
10000.0 |
4.32 |
-0.5 |
| 3 |
12000.0 |
4.32 |
-0.5 |
| 3 |
16000.0 |
4.32 |
-0.5 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
