What we know about the measurement:

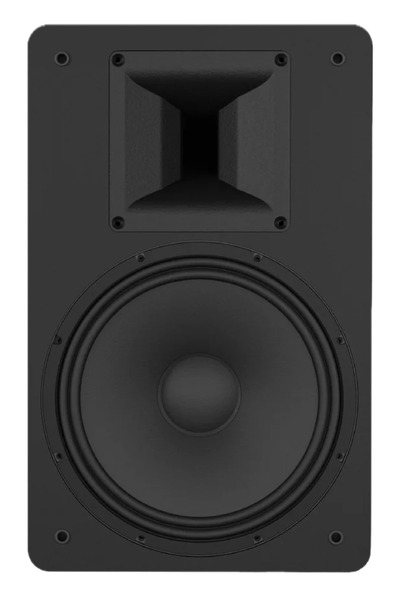

Power Sound Audio MT-110-M is a passive bookshelves speaker that cost around 1350USD for a pair .

  • Quality of the measurement data is high .
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 91.1dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
  • -3dB (resp. -6db) point v.s. reference is at 112.8Hz (resp. 88.6Hz).
  • Reference level is normalised to -0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.3dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.63 and would be 5.96 with a perfect subwoofer.
      • Details: NBD: ON 0.693, LW 0.596, SP 0.494, PIR 0.478; SM: SP0.875, PIR0.617; LFQ 1.548, LFX 85Hz
    • Tonality (Preference) Score is 4.69 with an EQ and would be 7.63 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.475, LW 0.415, SP 0.396, PIR 0.353; SM: SP0.971, PIR0.943; LFQ 1.548, LFX 69Hz
  • Link to original Review: eac review. .
  • Vendor specifications:
    • Sensitivity 95 dB
    • Impedance 8 Ohm
    • Size
      • Width 279mm
      • Height 444mm
      • Depth 356 mm)
    • Weight 13.6 kg
