What we know about the measurement:

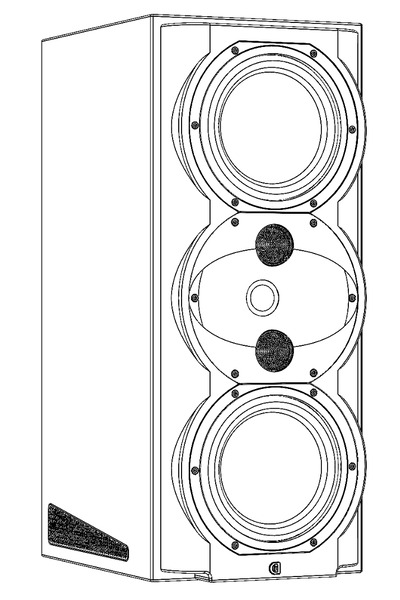

Perlisten r5m is a passive bookshelves that cost around 3000 USD each.

  • Quality of the measurement data is medium.
  • Origin of the data is Perlisten.
  • Format of the data is a scanned image .
  • Sensitivity: 89.2dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 61.7Hz (resp. 50.5Hz).
  • Reference level is normalised to 0.5dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.5dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.61 and would be 8.21 with a perfect subwoofer.
      • Details: NBD: ON 0.333, LW 0.286, SP 0.33, PIR 0.289; SM: SP0.976, PIR0.957; LFQ 2.403, LFX 58Hz
    • Tonality (Preference) Score is 6.48 with an EQ and would be 8.76 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.22, LW 0.173, SP 0.259, PIR 0.19; SM: SP0.969, PIR0.947; LFQ 2.403, LFX 49Hz
  • Link to original Review: vendor review. .
  • Note: Warning: measurements provided by vendor (Perlisten) are smoothed.
  • Vendor specifications:
    • Sensitivity 89.2 dB
    • Impedance 4 Ohm
    • SPL
      • max: 113 dB
    • Size
      • Width 230mm
      • Height 546mm
      • Depth 336 mm)
    • Weight 17.5 kg
Perlisten r5m
AutomaticEQ (IIR)
Set preamp gain to: -2.4dB.
Type Freq Q Gain
3 52.0 1.34 2.99
3 117.0 0.95 -2.26
3 579.0 2.98 -0.87
3 792.0 2.54 2.77
3 879.0 1.04 -2.13
3 9648.0 2.83 -0.7
3 12736.0 2.76 0.65
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Perlisten r5m filters_auto_eq

AutomaticEQ

Perlisten r5m filters_eq_full

Target v.s. EQ
CEA2034
On Axis
Estimated In-Room Response
CEA2034
On Axis
Estimated In-Room Response
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
