What we know about the measurement:

Perlisten r5c is a passive center that cost around 3000 USD

  • Quality of the measurement data is medium.
  • Origin of the data is Perlisten.
  • Format of the data is a scanned image .
  • Sensitivity: 87.9dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 78.1Hz (resp. 63.9Hz).
  • Reference level is normalised to 1.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.6dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 6.15 and would be 8.61 with a perfect subwoofer.
      • Details: NBD: ON 0.25, LW 0.207, SP 0.275, PIR 0.211; SM: SP0.972, PIR0.944; LFQ 1.697, LFX 54Hz
    • Tonality (Preference) Score is 7.32 with an EQ and would be 8.86 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.182, LW 0.159, SP 0.272, PIR 0.185; SM: SP0.97, PIR0.941; LFQ 1.379, LFX 32Hz
  • Link to original Review: vendor review. .
  • Note: Warning: measurements provided by vendor (Perlisten) are smoothed.
  • Vendor specifications:
    • Sensitivity 88.6 dB
    • Impedance 4 Ohm
    • SPL
      • max: 109 dB
    • Size
      • Width 550mm
      • Height 240mm
      • Depth 270 mm)
    • Weight 15.0 kg

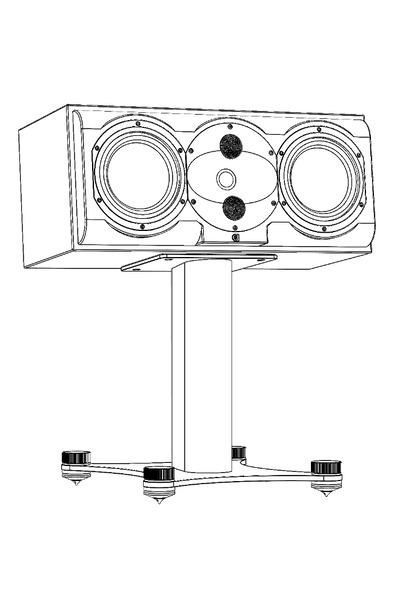

Perlisten r5c
AutomaticEQ (IIR)
Set preamp gain to: -5.0dB.
Type Freq Q Gain
3 32.0 0.99 2.99
3 80.0 0.25 2.99
3 130.0 0.86 -2.75
3 289.0 0.59 -2.69
3 1083.0 2.98 -0.57
3 3289.0 0.47 -1.1
3 9648.0 2.8 -1.72
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Perlisten r5c filters_auto_eq

AutomaticEQ

Perlisten r5c filters_eq_full

Target v.s. EQ
CEA2034
On Axis
Estimated In-Room Response
CEA2034
On Axis
Estimated In-Room Response
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
