What we know about the measurement:

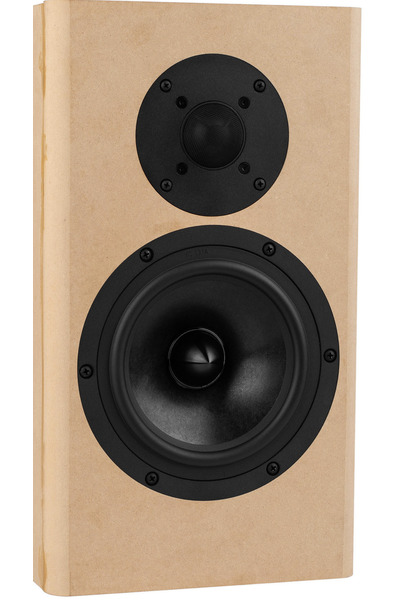

Part Express DIY Samba MT is a passive bookshelves that cost around 330 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 82.2dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 45.4Hz (resp. 39.6Hz).
  • Reference level is normalised to -0.8dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 6.0dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-70.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-40.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.64 and would be 6.44 with a perfect subwoofer.
      • Details: NBD: ON 0.706, LW 0.545, SP 0.415, PIR 0.413; SM: SP0.906, PIR0.759; LFQ 0.704, LFX 38Hz
    • Tonality (Preference) Score is 6.41 with an EQ and would be 7.9 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.516, LW 0.351, SP 0.272, PIR 0.219; SM: SP0.943, PIR0.933; LFQ 0.799, LFX 32Hz
  • Link to Original review.
Part Express DIY Samba MT
AutomaticEQ (IIR)
Set preamp gain to: -2.8dB.
Type Freq Q Gain
5 68.0 1.03 2.97
3 89.0 1.51 -2.97
3 109.0 1.1 -0.95
3 584.0 2.75 1.02
3 714.0 2.8 -2.04
3 1261.0 2.07 -2.48
3 1541.0 2.89 2.84
3 3216.0 2.19 1.92
3 7417.0 1.11 -1.82
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Part Express DIY Samba MT filters_auto_eq

AutomaticEQ

Part Express DIY Samba MT filters_eq_full

Target v.s. EQ

Part Express DIY Samba MT
Graphic EQ 15 bands
Set preamp gain to: -0.5dB.
Type Freq Q Gain
3 25.0 2.14 0.25
3 40.0 2.14 0.25
3 63.0 2.14 -0.25
3 100.0 2.14 -0.25
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 0.0
3 1000.0 2.14 -0.25
3 1600.0 2.14 0.5
3 2500.0 2.14 0.25
3 4000.0 2.14 0.25
3 6300.0 2.14 0.0
3 10000.0 2.14 0.0
3 16000.0 2.14 0.0
Download

These EQ is designed for a 15 bands graphical EQ.

Part Express DIY Samba MT
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.25
3 63.0 4.32 -0.25
3 80.0 4.32 -0.5
3 100.0 4.32 -0.5
3 125.0 4.32 -0.25
3 160.0 4.32 -0.25
3 200.0 4.32 -0.25
3 250.0 4.32 -0.25
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 -0.25
3 800.0 4.32 -0.25
3 1000.0 4.32 -0.25
3 1250.0 4.32 0.0
3 1600.0 4.32 0.5
3 2000.0 4.32 0.0
3 2500.0 4.32 0.25
3 3150.0 4.32 0.5
3 4000.0 4.32 0.25
3 5000.0 4.32 0.0
3 6300.0 4.32 -0.25
3 8000.0 4.32 -0.25
3 10000.0 4.32 0.0
3 12000.0 4.32 0.0
3 16000.0 4.32 0.0
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Part Express DIY Samba MT: comparison between EQs
Part Express DIY Samba MT

Comparison betweens various EQs

Part Express DIY Samba MT

Improvements made by EQ
