What we know about the measurement:

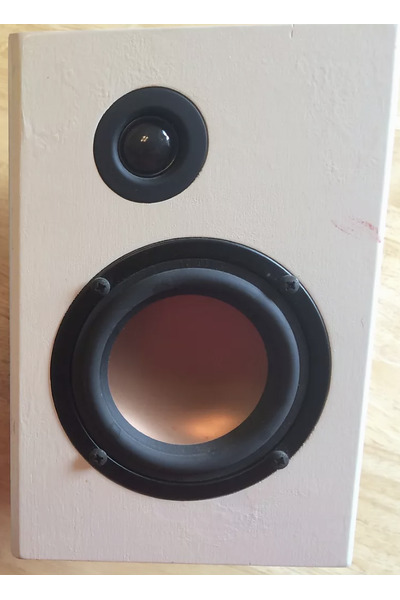

Part Express DIY Overnight Sensations MT is a passive bookshelves that cost around 160 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 77.1dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 67.4Hz (resp. 58.6Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.0dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-70.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-10.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.28 and would be 5.75 with a perfect subwoofer.
      • Details: NBD: ON 0.624, LW 0.54, SP 0.44, PIR 0.438; SM: SP0.733, PIR0.404; LFQ 0.396, LFX 54Hz
    • Tonality (Preference) Score is 5.54 with an EQ and would be 7.79 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.45, LW 0.367, SP 0.389, PIR 0.317; SM: SP0.952, PIR0.94; LFQ 0.396, LFX 48Hz
  • Link to Original review.
Part Express DIY Overnight Sensations MT
AutomaticEQ (IIR)
Set preamp gain to: -3.1dB.
Type Freq Q Gain
3 46.0 3.0 3.0
3 260.0 0.89 2.99
3 666.0 1.13 2.93
3 1823.0 0.49 -3.49
3 3525.0 2.99 2.99
3 6818.0 1.27 2.78
3 16239.0 2.79 -2.23
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Part Express DIY Overnight Sensations MT filters_auto_eq

AutomaticEQ

Part Express DIY Overnight Sensations MT filters_eq_full

Target v.s. EQ

Part Express DIY Overnight Sensations MT
Graphic EQ 15 bands
Set preamp gain to: -0.3dB.
Type Freq Q Gain
3 25.0 2.14 0.25
3 40.0 2.14 0.25
3 63.0 2.14 0.25
3 100.0 2.14 -0.25
3 160.0 2.14 0.25
3 250.0 2.14 0.25
3 400.0 2.14 0.25
3 630.0 2.14 0.25
3 1000.0 2.14 -0.25
3 1600.0 2.14 -0.5
3 2500.0 2.14 -0.5
3 4000.0 2.14 0.0
3 6300.0 2.14 0.0
3 10000.0 2.14 0.0
3 16000.0 2.14 -0.25
Download

These EQ is designed for a 15 bands graphical EQ.

Part Express DIY Overnight Sensations MT
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.25
3 31.0 4.32 0.25
3 40.0 4.32 0.25
3 50.0 4.32 0.25
3 63.0 4.32 0.25
3 80.0 4.32 0.0
3 100.0 4.32 -0.25
3 125.0 4.32 0.0
3 160.0 4.32 0.25
3 200.0 4.32 0.25
3 250.0 4.32 0.5
3 315.0 4.32 0.5
3 400.0 4.32 0.25
3 500.0 4.32 0.25
3 630.0 4.32 0.25
3 800.0 4.32 0.25
3 1000.0 4.32 -0.25
3 1250.0 4.32 -0.25
3 1600.0 4.32 -0.5
3 2000.0 4.32 -0.5
3 2500.0 4.32 -0.25
3 3150.0 4.32 0.0
3 4000.0 4.32 0.25
3 5000.0 4.32 0.25
3 6300.0 4.32 0.5
3 8000.0 4.32 0.5
3 10000.0 4.32 0.25
3 12000.0 4.32 0.25
3 16000.0 4.32 0.0
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Part Express DIY Overnight Sensations MT: comparison between EQs
Part Express DIY Overnight Sensations MT

Comparison betweens various EQs

Part Express DIY Overnight Sensations MT

Improvements made by EQ
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
