What we know about the measurement:

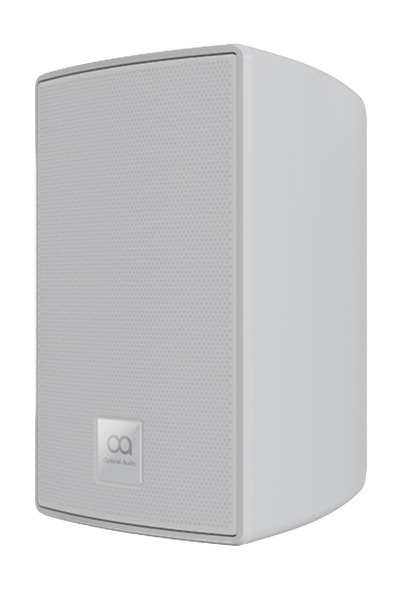

Optimal Audio Cuboid 5 is a passive bookshelves speaker that cost around 110USD each .

  • Quality of the measurement data is low .
  • Origin of the data is Optimal Audio.
  • Format of the data is a GLL file .
  • Sensitivity: 71.9dB (avg. 100Hz-1kHz for 2.83V measured at 10m)
  • -3dB (resp. -6db) point v.s. reference is at 122.0Hz (resp. 106.0Hz).
  • Reference level is normalised to -0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is -0.13 and would be 3.54 with a perfect subwoofer.
      • Details: NBD: ON 0.695, LW 0.737, SP 0.909, PIR 0.827; SM: SP0.215, PIR0.028; LFQ 0.497, LFX 102Hz
    • Tonality (Preference) Score is 0.83 with an EQ and would be 4.65 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.565, LW 0.592, SP 0.747, PIR 0.662; SM: SP0.427, PIR0.155; LFQ 0.497, LFX 111Hz
  • Vendor specifications:
    • Dispersion: 150° horizontal and 100° vertical.
    • Sensitivity 88 dB
    • Impedance 8 Ohm
    • Size
      • Width 155mm
      • Height 255mm
      • Depth 150 mm)
    • Weight 2.15 kg
