What we know about the measurement:
- Quality of the measurement data is
low.
-
Origin of the data is Sound and Recording.
-
Format of the data is
a scanned image
.
-
-3dB (resp. -6db) point v.s. reference is at 48.5Hz (resp. 42.8Hz).
-
Reference level is normalised to 0.4dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.6dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 6.13
and would be 8.1 with a
perfect subwoofer.
- Details:
NBD: ON 0.29,
LW 0.239, SP
0.438, PIR
0.295; SM:
SP0.818,
PIR0.874; LFQ
1.557, LFX 41Hz
- Tonality (Preference) Score is 6.7
with an EQ and would be 8.47 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.271,
LW 0.221, SP
0.352, PIR
0.229; SM:
SP0.848,
PIR0.928; LFQ 1.557, LFX 37Hz
-
Link to original Review: sr review.
Links to other reviews: sos review
.
-

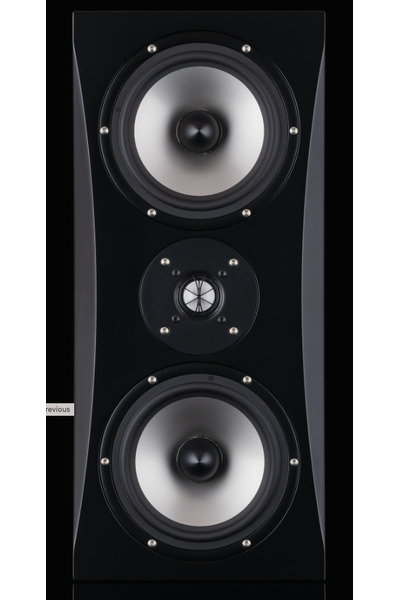

Vendor specifications:
- Dispersion: 90° horizontal and 50° vertical.
- Sensitivity 92 dB
- Impedance 8 Ohm
- Size
- Width 256mm
- Height 422mm
- Depth 261mm
- Weight 10.0kg
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -1.9dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
42.0 |
1.33 |
3.0 |
| PK |
80.0 |
0.69 |
-2.19 |
| PK |
621.0 |
2.96 |
-1.7 |
| PK |
1202.0 |
2.92 |
-0.86 |
| PK |
3289.0 |
1.0 |
-1.76 |
| PK |
6585.0 |
2.94 |
-1.36 |
| PK |
9001.0 |
0.64 |
0.41 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.9dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
25.0 |
2.14 |
0.75 |
| PK |
40.0 |
2.14 |
0.75 |
| PK |
63.0 |
2.14 |
-0.25 |
| PK |
100.0 |
2.14 |
-0.25 |
| PK |
160.0 |
2.14 |
-0.25 |
| PK |
250.0 |
2.14 |
-0.25 |
| PK |
400.0 |
2.14 |
0.0 |
| PK |
630.0 |
2.14 |
-0.25 |
| PK |
1000.0 |
2.14 |
0.0 |
| PK |
1600.0 |
2.14 |
0.25 |
| PK |
2500.0 |
2.14 |
0.0 |
| PK |
4000.0 |
2.14 |
-0.5 |
| PK |
6300.0 |
2.14 |
0.0 |
| PK |
10000.0 |
2.14 |
0.25 |
| PK |
16000.0 |
2.14 |
0.25 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
20.0 |
4.32 |
0.0 |
| PK |
25.0 |
4.32 |
0.5 |
| PK |
31.0 |
4.32 |
0.5 |
| PK |
40.0 |
4.32 |
0.5 |
| PK |
50.0 |
4.32 |
0.25 |
| PK |
63.0 |
4.32 |
0.0 |
| PK |
80.0 |
4.32 |
-0.25 |
| PK |
100.0 |
4.32 |
-0.25 |
| PK |
125.0 |
4.32 |
-0.25 |
| PK |
160.0 |
4.32 |
0.0 |
| PK |
200.0 |
4.32 |
0.0 |
| PK |
250.0 |
4.32 |
-0.25 |
| PK |
315.0 |
4.32 |
0.0 |
| PK |
400.0 |
4.32 |
0.0 |
| PK |
500.0 |
4.32 |
0.0 |
| PK |
630.0 |
4.32 |
0.0 |
| PK |
800.0 |
4.32 |
0.0 |
| PK |
1000.0 |
4.32 |
0.0 |
| PK |
1250.0 |
4.32 |
0.0 |
| PK |
1600.0 |
4.32 |
0.25 |
| PK |
2000.0 |
4.32 |
0.0 |
| PK |
2500.0 |
4.32 |
0.0 |
| PK |
3150.0 |
4.32 |
-0.25 |
| PK |
4000.0 |
4.32 |
-0.25 |
| PK |
5000.0 |
4.32 |
0.0 |
| PK |
6300.0 |
4.32 |
0.0 |
| PK |
8000.0 |
4.32 |
0.25 |
| PK |
10000.0 |
4.32 |
0.25 |
| PK |
12000.0 |
4.32 |
0.25 |
| PK |
16000.0 |
4.32 |
0.25 |
| PK |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
