We have multiple measurements for this speaker. Click here to see the default one (which is higher quality if we have one measurement better than the others).

Neumann KH 80 is an active bookshelves that cost around 1000 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 58.6Hz (resp. 52.7Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.3dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.8 and would be 8.22 with a perfect subwoofer.
      • Details: NBD: ON 0.272, LW 0.239, SP 0.244, PIR 0.204; SM: SP0.907, PIR0.789; LFQ 0.564, LFX 52Hz
    • Tonality (Preference) Score is 6.09 with an EQ and would be 8.51 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.284, LW 0.249, SP 0.223, PIR 0.193; SM: SP0.959, PIR0.912; LFQ 0.564, LFX 52Hz

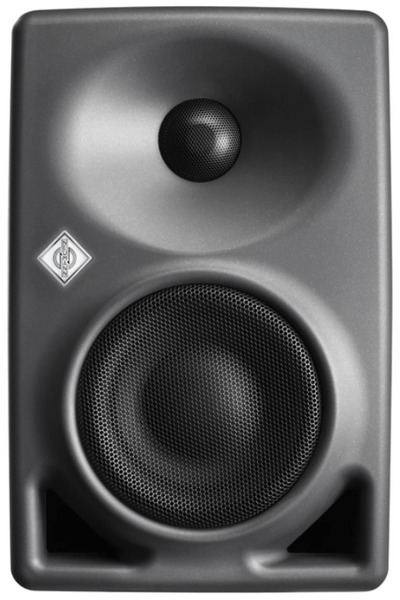

Neumann KH 80

Vendor specifications

  • Size
    • Width 243mm
    • Height 345mm
    • Depth 277mm
  • Weight 4.1kg

Directivity (-6dB)

AutomaticEQ (IIR)
Set preamp gain to: -0.5dB.
Type Freq Q Gain
PK 73.0 2.99 -3.0
PK 407.0 2.76 -1.06
PK 671.0 2.48 -1.0
PK 3456.0 2.88 -1.09
PK 8111.0 0.6 -1.02
PK 853.0 2.63 -0.8
PK 2065.0 1.68 0.76
PK 206.0 1.36 -0.76
PK 15505.0 2.66 -2.5
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
flipflop@ASR (IIR)
Set preamp gain to: -1.8dB.
Type Freq Q Gain
PK 381.0 12.0 -0.7
PK 588.0 11.0 0.8
PK 638.0 10.0 -1.0
PK 709.0 12.0 -0.3
PK 778.0 18.0 -0.7
PK 1183.0 14.0 0.6
PK 1540.0 8.0 0.6
PK 1780.0 9.0 1.4
PK 2060.0 8.0 1.5
PK 2330.0 15.0 1.3
PK 2635.0 25.0 0.9
PK 2930.0 20.0 0.8
PK 3232.0 24.0 0.5
PK 3460.0 10.0 -0.4
PK 5600.0 10.0 0.8
PK 6500.0 10.0 -0.5
PK 9750.0 4.5 -1.0
PK 10940.0 10.0 0.4
PK 12650.0 5.0 -0.7
PK 16000.0 1.4 -2.6
Download
This EQ is designed by ASR member flipflop.
Graphic EQ 15 bands
Set preamp gain to: -0.6dB.
Type Freq Q Gain
PK 25.0 2.14 0.5
PK 40.0 2.14 0.5
PK 63.0 2.14 0.25
PK 100.0 2.14 0.0
PK 160.0 2.14 -0.25
PK 250.0 2.14 -0.25
PK 400.0 2.14 -0.25
PK 630.0 2.14 -0.25
PK 1000.0 2.14 0.0
PK 1600.0 2.14 0.25
PK 2500.0 2.14 0.25
PK 4000.0 2.14 0.0
PK 6300.0 2.14 0.0
PK 10000.0 2.14 0.0
PK 16000.0 2.14 -0.5
Download
This EQ is designed for a 15 bands graphical EQ.
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.5
PK 31.0 4.32 0.5
PK 40.0 4.32 0.5
PK 50.0 4.32 0.5
PK 63.0 4.32 0.25
PK 80.0 4.32 0.0
PK 100.0 4.32 0.0
PK 125.0 4.32 0.0
PK 160.0 4.32 -0.25
PK 200.0 4.32 -0.25
PK 250.0 4.32 -0.25
PK 315.0 4.32 -0.25
PK 400.0 4.32 -0.25
PK 500.0 4.32 0.0
PK 630.0 4.32 -0.25
PK 800.0 4.32 0.0
PK 1000.0 4.32 0.0
PK 1250.0 4.32 0.0
PK 1600.0 4.32 0.25
PK 2000.0 4.32 0.5
PK 2500.0 4.32 0.25
PK 3150.0 4.32 0.25
PK 4000.0 4.32 0.25
PK 5000.0 4.32 0.25
PK 6300.0 4.32 0.25
PK 8000.0 4.32 0.25
PK 10000.0 4.32 0.0
PK 12000.0 4.32 0.0
PK 16000.0 4.32 -0.25
PK 20000.0 4.32 0.0
Download
This EQ is designed for a 31 bands graphical EQ.
