What we know about the measurement:

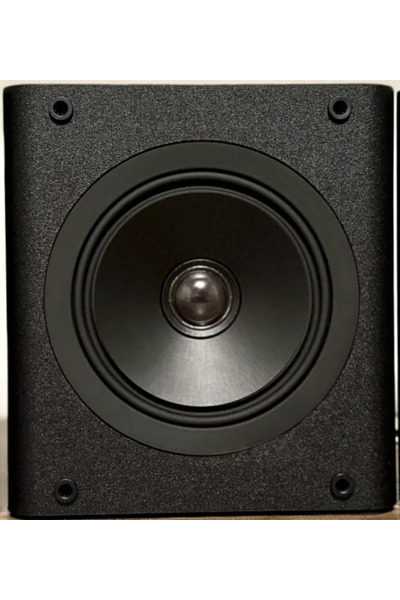

Monoprice Monolith THX Compact Satellite is a passive bookshelves speaker that cost around 125USD each .

  • Quality of the measurement data is high .
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 79.6dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
  • -3dB (resp. -6db) point v.s. reference is at 82.0Hz (resp. 71.8Hz).
  • Reference level is normalised to 0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.0dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-60.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.26 and would be 6.25 with a perfect subwoofer.
      • Details: NBD: ON 0.497, LW 0.47, SP 0.451, PIR 0.436; SM: SP0.764, PIR0.479; LFQ 0.493, LFX 71Hz
    • Tonality (Preference) Score is 5.36 with an EQ and would be 8.11 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.353, LW 0.331, SP 0.302, PIR 0.282; SM: SP0.957, PIR0.929; LFQ 0.437, LFX 62Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 81 dB
    • Impedance 4 Ohm
    • Size
      • Width 160mm
      • Height 153mm
      • Depth 150 mm)
    • Weight 1.9 kg
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
