What we know about the measurement:

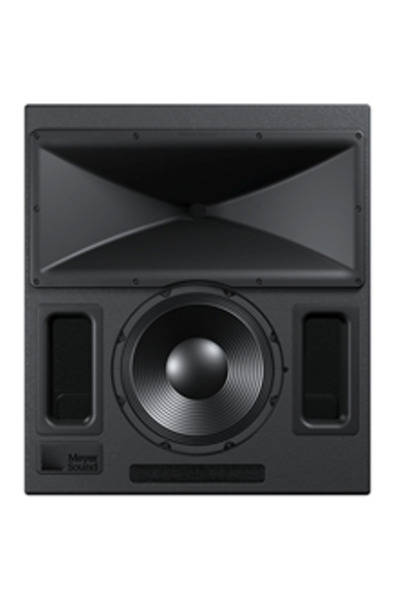

Meyer Sound Acheron 100 is an active cinema speaker .

  • Quality of the measurement data is medium .
  • Origin of the data is Meyer Sound.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 40.0Hz (resp. 38.7Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.5dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.03 and would be 5.87 with a perfect subwoofer.
      • Details: NBD: ON 0.569, LW 0.493, SP 0.622, PIR 0.536; SM: SP0.761, PIR0.521; LFQ 2.687, LFX 38Hz
    • Tonality (Preference) Score is 5.56 with an EQ and would be 7.4 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.453, LW 0.366, SP 0.5, PIR 0.409; SM: SP0.919, PIR0.891; LFQ 2.687, LFX 38Hz
  • Note: Data provided by Meyer is high quality above 50Hz-100Hz
