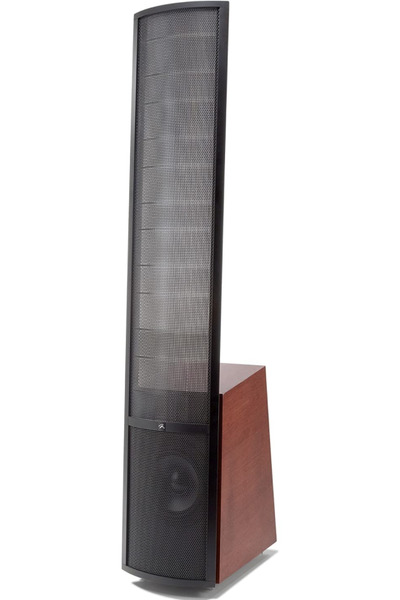

What we know about the measurement:
- Quality of the measurement data is
low.
-
Origin of the data is Misc.
-
Format of the data is
a scanned image
.
-
Sensitivity: 87.6dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
-
-3dB (resp. -6db) point v.s. reference is at 267.4Hz (resp. 51.6Hz).
-
Reference level is normalised to 1.6dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 6.3dB over the same frequency range.
- Tonality (Preference) Score
- Note: The tonality (Preference) score
does not make sense for panel speakers. Don't give too much credits
to the value.
- Tonality (Preference) Score is 4.32
and would be 6.24 with a
perfect subwoofer.
- Details:
NBD: ON 0.683,
LW 0.599, SP
0.403, PIR
0.459; SM:
SP0.904,
PIR0.706; LFQ
0.989, LFX 40Hz
- Tonality (Preference) Score is 5.77
with an EQ and would be 7.47 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.531,
LW 0.424, SP
0.416, PIR
0.362; SM:
SP0.947,
PIR0.948; LFQ 0.989, LFX 35Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -2.0dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
172.0 |
0.79 |
2.38 |
| 3 |
409.0 |
1.18 |
-2.18 |
| 3 |
579.0 |
2.47 |
-2.28 |
| 3 |
1288.0 |
1.73 |
-2.96 |
| 3 |
3912.0 |
2.73 |
-1.32 |
| 3 |
4654.0 |
3.0 |
2.93 |
| 3 |
5165.0 |
2.98 |
-2.37 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.8dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.25 |
| 3 |
40.0 |
2.14 |
0.25 |
| 3 |
63.0 |
2.14 |
0.25 |
| 3 |
100.0 |
2.14 |
0.25 |
| 3 |
160.0 |
2.14 |
0.25 |
| 3 |
250.0 |
2.14 |
0.25 |
| 3 |
400.0 |
2.14 |
-0.25 |
| 3 |
630.0 |
2.14 |
-0.25 |
| 3 |
1000.0 |
2.14 |
-0.25 |
| 3 |
1600.0 |
2.14 |
-0.25 |
| 3 |
2500.0 |
2.14 |
0.25 |
| 3 |
4000.0 |
2.14 |
0.25 |
| 3 |
6300.0 |
2.14 |
0.75 |
| 3 |
10000.0 |
2.14 |
0.25 |
| 3 |
16000.0 |
2.14 |
0.25 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -1.3dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.25 |
| 3 |
31.0 |
4.32 |
0.25 |
| 3 |
40.0 |
4.32 |
0.25 |
| 3 |
50.0 |
4.32 |
0.25 |
| 3 |
63.0 |
4.32 |
0.25 |
| 3 |
80.0 |
4.32 |
0.25 |
| 3 |
100.0 |
4.32 |
0.25 |
| 3 |
125.0 |
4.32 |
0.25 |
| 3 |
160.0 |
4.32 |
0.25 |
| 3 |
200.0 |
4.32 |
0.25 |
| 3 |
250.0 |
4.32 |
0.25 |
| 3 |
315.0 |
4.32 |
-0.25 |
| 3 |
400.0 |
4.32 |
-0.25 |
| 3 |
500.0 |
4.32 |
-0.5 |
| 3 |
630.0 |
4.32 |
-0.25 |
| 3 |
800.0 |
4.32 |
0.0 |
| 3 |
1000.0 |
4.32 |
0.0 |
| 3 |
1250.0 |
4.32 |
-0.25 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
0.5 |
| 3 |
2500.0 |
4.32 |
0.5 |
| 3 |
3150.0 |
4.32 |
0.25 |
| 3 |
4000.0 |
4.32 |
0.5 |
| 3 |
5000.0 |
4.32 |
0.5 |
| 3 |
6300.0 |
4.32 |
1.0 |
| 3 |
8000.0 |
4.32 |
0.75 |
| 3 |
10000.0 |
4.32 |
0.75 |
| 3 |
12000.0 |
4.32 |
1.0 |
| 3 |
16000.0 |
4.32 |
0.75 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
