What we know about the measurement:

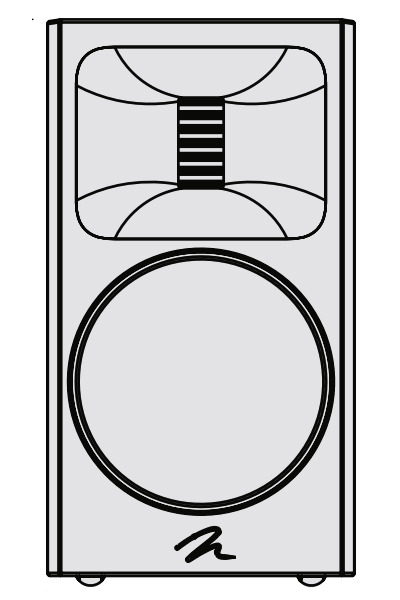

MartinLogan Motion XT B100 is a passive bookshelves speaker that cost around 800USD each .

  • Quality of the measurement data is high .
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 86.0dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
  • -3dB (resp. -6db) point v.s. reference is at 71.8Hz (resp. 58.6Hz).
  • Reference level is normalised to 0.6dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.0dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.68 and would be 5.2 with a perfect subwoofer.
      • Details: NBD: ON 0.542, LW 0.513, SP 0.467, PIR 0.442; SM: SP0.656, PIR0.084; LFQ 0.55, LFX 55Hz
    • Tonality (Preference) Score is 5.42 with an EQ and would be 7.84 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.412, LW 0.366, SP 0.405, PIR 0.332; SM: SP0.947, PIR0.938; LFQ 0.55, LFX 52Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 93 dB
    • Impedance 4 Ohm
    • Size
      • Width 203mm
      • Height 368mm
      • Depth 318 mm)
    • Weight 9.3 kg
