We have multiple measurements for this speaker. Click here to see the default one (which is higher quality if we have one measurement better than the others).

What we know about the measurement:

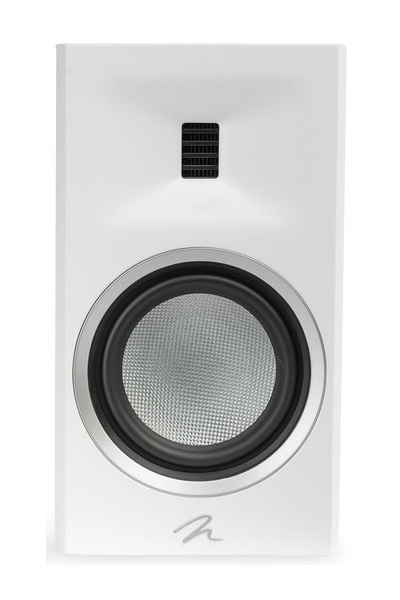

MartinLogan Motion B10 is a passive bookshelves that cost around 360 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 77.6Hz (resp. 64.5Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.3dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.15 and would be 6.81 with a perfect subwoofer.
      • Details: NBD: ON 0.444, LW 0.432, SP 0.434, PIR 0.387; SM: SP0.802, PIR0.602; LFQ 0.461, LFX 60Hz
    • Tonality (Preference) Score is 5.31 with an EQ and would be 7.68 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.44, LW 0.417, SP 0.425, PIR 0.377; SM: SP0.963, PIR0.958; LFQ 0.461, LFX 51Hz
  • Link to original Review: asr review. Links to other reviews: eac review , yt review .
  • Vendor specifications:
    • Sensitivity 92 dB
    • Impedance 5 Ohm
    • Size
      • Width 178mm
      • Height 318mm
      • Depth 248mm
    • Weight 6.6kg
MartinLogan Motion B10
AutomaticEQ (IIR)
Set preamp gain to: -3.0dB.
Type Freq Q Gain
PK 51.0 2.87 3.0
PK 243.0 2.94 1.13
PK 1381.0 2.66 -1.4
PK 2168.0 1.04 1.41
PK 5165.0 1.35 -1.41
PK 9989.0 0.46 -3.19
PK 15150.0 1.26 -3.78
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
MartinLogan Motion B10
AutomaticEQ LW (IIR)
Set preamp gain to: -2.7dB.
Type Freq Q Gain
PK 77.0 4.8 2.72
PK 790.0 1.46 2.03
PK 933.0 4.99 -3.04
PK 1884.0 1.89 1.09
PK 3110.0 4.16 1.62
PK 3930.0 3.48 -0.93
PK 14965.0 2.79 -1.37
Download
This EQ optimise for a flat listening window and is a good start for near field listening like on your desk.
MartinLogan Motion B10
AutomaticEQ Score (IIR)
Set preamp gain to: -4.8dB.
Type Freq Q Gain
LS 77.0 0.87 4.85
PK 764.0 1.38 1.8
PK 903.0 6.0 -3.08
PK 1948.0 1.45 1.28
PK 3008.0 5.85 1.61
PK 6489.0 1.1 -1.82
PK 16000.0 0.96 -1.54
Download
MartinLogan Motion B10
maiky76@ASR LW (IIR)
Set preamp gain to: -1.8dB.
Type Freq Q Gain
HP 50.04 1.15 0.0
PK 128.04 1.46 -1.93
PK 904.08 4.98 -1.68
PK 2451.5 0.64 1.34
PK 4462.93 0.75 -1.94
PK 14872.65 2.81 -2.45
Download
This EQ is designed by ASR member maiky76. This EQ optimise for a flat listening window and is a good start for near field listening like on your desk.
MartinLogan Motion B10
maiky76@ASR (IIR)
Set preamp gain to: -1.6dB.
Type Freq Q Gain
HP 49.54 1.15 0.0
PK 122.93 1.22 -2.15
PK 889.39 4.98 -3.09
PK 1402.1 1.9 -1.2
PK 1876.37 0.47 1.5
PK 5969.04 0.76 -3.53
PK 15316.64 2.48 -3.18
Download
This EQ is designed by ASR member maiky76. This EQ optimise the Harman score and is a good start for far field listening like in your living room.
MartinLogan Motion B10
Graphic EQ 15 bands
Set preamp gain to: -0.3dB.
Type Freq Q Gain
PK 25.0 2.14 0.25
PK 40.0 2.14 0.25
PK 63.0 2.14 0.25
PK 100.0 2.14 0.0
PK 160.0 2.14 -0.25
PK 250.0 2.14 0.0
PK 400.0 2.14 -0.25
PK 630.0 2.14 0.0
PK 1000.0 2.14 -0.25
PK 1600.0 2.14 0.0
PK 2500.0 2.14 0.0
PK 4000.0 2.14 -0.5
PK 6300.0 2.14 -0.5
PK 10000.0 2.14 -0.5
PK 16000.0 2.14 -0.5
Download
This EQ is designed for a 15 bands graphical EQ.
MartinLogan Motion B10
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.5
PK 31.0 4.32 0.5
PK 40.0 4.32 0.5
PK 50.0 4.32 0.5
PK 63.0 4.32 0.5
PK 80.0 4.32 0.25
PK 100.0 4.32 0.0
PK 125.0 4.32 -0.25
PK 160.0 4.32 -0.25
PK 200.0 4.32 0.0
PK 250.0 4.32 0.0
PK 315.0 4.32 0.0
PK 400.0 4.32 0.0
PK 500.0 4.32 0.0
PK 630.0 4.32 0.0
PK 800.0 4.32 0.0
PK 1000.0 4.32 0.0
PK 1250.0 4.32 -0.25
PK 1600.0 4.32 0.0
PK 2000.0 4.32 0.0
PK 2500.0 4.32 -0.25
PK 3150.0 4.32 0.0
PK 4000.0 4.32 -0.5
PK 5000.0 4.32 -0.25
PK 6300.0 4.32 -0.5
PK 8000.0 4.32 -0.25
PK 10000.0 4.32 -0.25
PK 12000.0 4.32 -0.5
PK 16000.0 4.32 -0.75
PK 20000.0 4.32 0.0
Download
This EQ is designed for a 31 bands graphical EQ.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
MartinLogan Motion B10: comparison between EQs
AutomaticEQ
Target v.s. EQ
Comparison betweens various EQs
;
