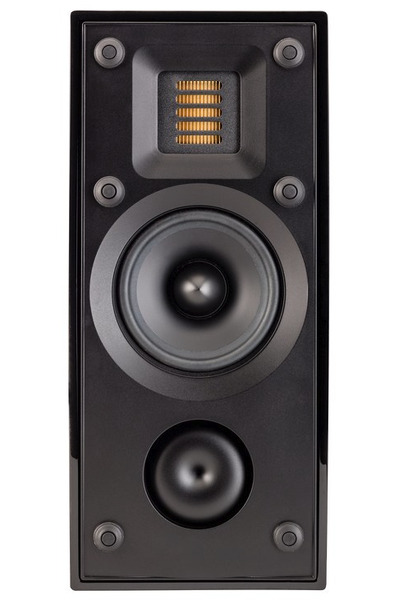

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 85.9dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
-
-3dB (resp. -6db) point v.s. reference is at 159.7Hz (resp. 108.4Hz).
-
Reference level is normalised to 0.1dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.7dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-60.0°, 50.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-20.0°, 30.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 1.46
and would be 5.09 with a
perfect subwoofer.
- Details:
NBD: ON 0.547,
LW 0.551, SP
0.426, PIR
0.449; SM:
SP0.583,
PIR0.052; LFQ
0.258, LFX 101Hz
- Tonality (Preference) Score is 5.2
with an EQ and would be 7.81 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.409,
LW 0.417, SP
0.358, PIR
0.326; SM:
SP0.949,
PIR0.917; LFQ 0.23, LFX 58Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -4.8dB.
|
| Type |
Freq |
Q |
Gain |
| 5 |
159.0 |
1.16 |
2.95 |
| 3 |
159.0 |
2.36 |
-0.35 |
| 3 |
159.0 |
0.36 |
2.77 |
| 3 |
229.0 |
1.27 |
-1.68 |
| 3 |
1394.0 |
1.94 |
-1.87 |
| 3 |
1948.0 |
2.63 |
2.77 |
| 3 |
7669.0 |
2.95 |
-1.69 |
| 3 |
13997.0 |
1.53 |
-2.29 |
| 3 |
15474.0 |
1.11 |
-2.29 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -1.0dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
410.0 |
6.0 |
0.5 |
| 3 |
468.0 |
9.0 |
-0.4 |
| 3 |
573.0 |
4.5 |
-1.4 |
| 3 |
790.0 |
14.0 |
1.1 |
| 3 |
850.0 |
10.0 |
-2.9 |
| 3 |
1037.0 |
5.3 |
-2.0 |
| 3 |
1365.0 |
4.5 |
-3.1 |
| 3 |
1680.0 |
15.0 |
-0.4 |
| 3 |
1925.0 |
11.0 |
1.7 |
| 3 |
2105.0 |
13.0 |
-0.7 |
| 3 |
2287.0 |
15.0 |
0.9 |
| 3 |
2478.0 |
12.0 |
-2.2 |
| 3 |
3025.0 |
6.5 |
-2.3 |
| 3 |
3640.0 |
5.5 |
-1.9 |
| 3 |
3940.0 |
17.0 |
0.8 |
| 3 |
4470.0 |
12.0 |
0.6 |
| 3 |
5250.0 |
3.8 |
-1.8 |
| 3 |
7850.0 |
4.0 |
-2.6 |
| 3 |
9550.0 |
6.0 |
1.6 |
| 3 |
15540.0 |
0.85 |
-6.2 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.5 |
| 3 |
100.0 |
2.14 |
0.5 |
| 3 |
160.0 |
2.14 |
0.5 |
| 3 |
250.0 |
2.14 |
0.25 |
| 3 |
400.0 |
2.14 |
0.25 |
| 3 |
630.0 |
2.14 |
0.0 |
| 3 |
1000.0 |
2.14 |
-0.25 |
| 3 |
1600.0 |
2.14 |
-0.25 |
| 3 |
2500.0 |
2.14 |
-0.25 |
| 3 |
4000.0 |
2.14 |
-0.25 |
| 3 |
6300.0 |
2.14 |
-0.5 |
| 3 |
10000.0 |
2.14 |
-0.5 |
| 3 |
16000.0 |
2.14 |
-1.0 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.8dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.5 |
| 3 |
31.0 |
4.32 |
0.5 |
| 3 |
40.0 |
4.32 |
0.5 |
| 3 |
50.0 |
4.32 |
0.5 |
| 3 |
63.0 |
4.32 |
0.5 |
| 3 |
80.0 |
4.32 |
0.5 |
| 3 |
100.0 |
4.32 |
0.5 |
| 3 |
125.0 |
4.32 |
0.5 |
| 3 |
160.0 |
4.32 |
0.5 |
| 3 |
200.0 |
4.32 |
0.25 |
| 3 |
250.0 |
4.32 |
0.25 |
| 3 |
315.0 |
4.32 |
0.25 |
| 3 |
400.0 |
4.32 |
0.25 |
| 3 |
500.0 |
4.32 |
0.0 |
| 3 |
630.0 |
4.32 |
0.0 |
| 3 |
800.0 |
4.32 |
0.0 |
| 3 |
1000.0 |
4.32 |
-0.25 |
| 3 |
1250.0 |
4.32 |
-0.25 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
0.25 |
| 3 |
2500.0 |
4.32 |
0.0 |
| 3 |
3150.0 |
4.32 |
-0.25 |
| 3 |
4000.0 |
4.32 |
0.0 |
| 3 |
5000.0 |
4.32 |
-0.25 |
| 3 |
6300.0 |
4.32 |
-0.25 |
| 3 |
8000.0 |
4.32 |
-0.75 |
| 3 |
10000.0 |
4.32 |
-0.5 |
| 3 |
12000.0 |
4.32 |
-0.75 |
| 3 |
16000.0 |
4.32 |
-1.0 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
