What we know about the measurement:

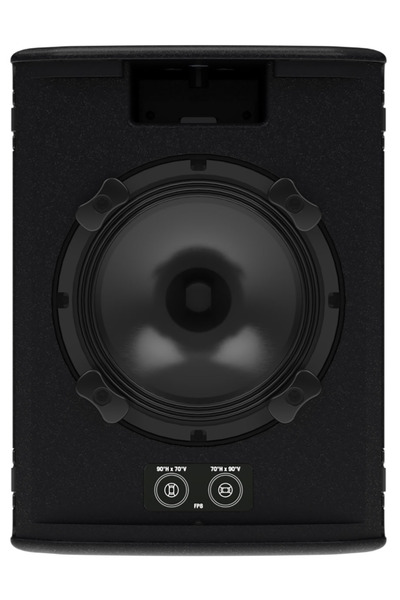

Martin Audio Flexpoint FP8 is a passive liveportable that cost around 1300 USD each.

  • Quality of the measurement data is unknown.
  • Origin of the data is Martin Audio.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 92.1dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 72.1dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 58.0Hz (resp. 51.5Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 1.73 and would be 4.05 with a perfect subwoofer.
      • Details: NBD: ON 0.779, LW 0.822, SP 1.099, PIR 0.987; SM: SP0.735, PIR0.544; LFQ 0.763, LFX 49Hz
  • Note: data looks valid between 125Hz and 12kHz maybe 16kHz..
  • Vendor specifications:
    • Dispersion: 100° horizontal and 80° vertical.
    • Sensitivity 94 dB
    • Impedance 8 Ohm
    • SPL
      • continuous: 118 dB
      • peak: 124 dB
    • Size
      • Width 280mm
      • Height 376mm
      • Depth 265 mm)
    • Weight 9.3 kg
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
;
