- Quality of the measurement data is low.
- Origin of the data is Misc.
- Format of the data is a set of 36 horizontal and 36 vertical measurements .
-
Sensitivity:
- Measured: 87.0 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 119.9Hz (resp. 89.8Hz).
- Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 1.8dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 2.95
and would be 6.36 with a
perfect subwoofer.
- Details: NBD: ON 0.35, LW 0.328, SP 0.395, PIR 0.353; SM: SP0.226, PIR0.264; LFQ 1.04, LFX 89Hz
- Tonality (Preference) Score is 4.67
with an EQ and would be 7.76 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.228, LW 0.203, SP 0.306, PIR 0.249; SM: SP0.505, PIR0.602; LFQ 1.04, LFX 75Hz
- Tonality (Preference) Score is 2.95
and would be 6.36 with a
perfect subwoofer.
- Link to Original review.

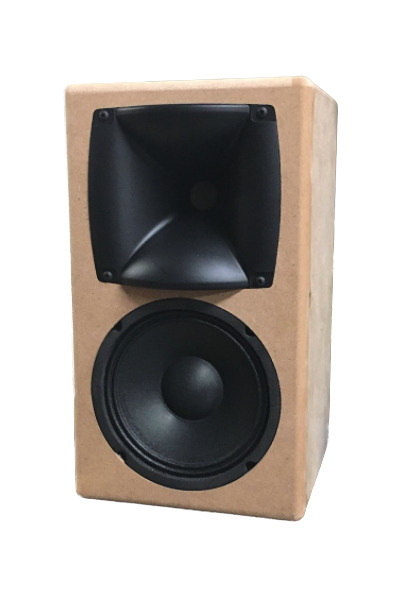

MTG Designs VBS-6.2 DIY is a passive bookshelves that cost around 200 USD for a pair.
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -4.9dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| LS | 119.0 | 0.79 | 2.84 |
| PK | 119.0 | 0.6 | 1.6 |
| PK | 119.0 | 1.9 | -1.29 |
| PK | 119.0 | 0.45 | 2.43 |
| PK | 207.0 | 0.87 | -2.95 |
| PK | 4202.0 | 0.4 | 1.28 |
| PK | 4803.0 | 2.71 | -1.3 |
| PK | 9372.0 | 2.44 | -2.74 |
| PK | 9691.0 | 0.49 | 2.6 |
| Download | |||
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| Graphic EQ 15 bands | |||
| Set preamp gain to: -1.1dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 25.0 | 2.14 | 0.75 |
| PK | 40.0 | 2.14 | 0.75 |
| PK | 63.0 | 2.14 | 0.75 |
| PK | 100.0 | 2.14 | 0.75 |
| PK | 160.0 | 2.14 | 0.25 |
| PK | 250.0 | 2.14 | 0.0 |
| PK | 400.0 | 2.14 | 0.0 |
| PK | 630.0 | 2.14 | 0.25 |
| PK | 1000.0 | 2.14 | -0.25 |
| PK | 1600.0 | 2.14 | 0.25 |
| PK | 2500.0 | 2.14 | 0.25 |
| PK | 4000.0 | 2.14 | 0.25 |
| PK | 6300.0 | 2.14 | 0.5 |
| PK | 10000.0 | 2.14 | 0.25 |
| PK | 16000.0 | 2.14 | 0.5 |
| Download | |||
This EQ is designed for a 15 bands graphical EQ.
| Graphic EQ 31 bands | |||
| Set preamp gain to: -1.2dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 20.0 | 4.32 | 0.0 |
| PK | 25.0 | 4.32 | 0.75 |
| PK | 31.0 | 4.32 | 0.75 |
| PK | 40.0 | 4.32 | 0.75 |
| PK | 50.0 | 4.32 | 0.75 |
| PK | 63.0 | 4.32 | 0.75 |
| PK | 80.0 | 4.32 | 0.75 |
| PK | 100.0 | 4.32 | 0.75 |
| PK | 125.0 | 4.32 | 0.75 |
| PK | 160.0 | 4.32 | 0.25 |
| PK | 200.0 | 4.32 | 0.0 |
| PK | 250.0 | 4.32 | 0.0 |
| PK | 315.0 | 4.32 | 0.0 |
| PK | 400.0 | 4.32 | 0.0 |
| PK | 500.0 | 4.32 | 0.0 |
| PK | 630.0 | 4.32 | 0.25 |
| PK | 800.0 | 4.32 | 0.0 |
| PK | 1000.0 | 4.32 | 0.0 |
| PK | 1250.0 | 4.32 | 0.0 |
| PK | 1600.0 | 4.32 | 0.5 |
| PK | 2000.0 | 4.32 | 0.5 |
| PK | 2500.0 | 4.32 | 0.25 |
| PK | 3150.0 | 4.32 | 0.5 |
| PK | 4000.0 | 4.32 | 0.5 |
| PK | 5000.0 | 4.32 | 0.25 |
| PK | 6300.0 | 4.32 | 0.5 |
| PK | 8000.0 | 4.32 | 0.25 |
| PK | 10000.0 | 4.32 | 0.25 |
| PK | 12000.0 | 4.32 | 0.5 |
| PK | 16000.0 | 4.32 | 0.5 |
| PK | 20000.0 | 4.32 | 0.0 |
| Download | |||
This EQ is designed for a 31 bands graphical EQ.
