What we know about the measurement:

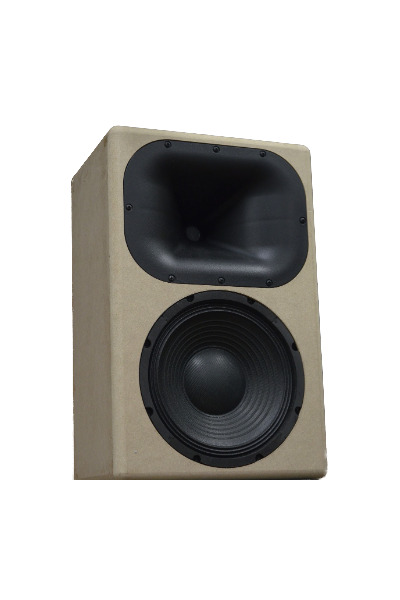

MTG Designs VBS-10.2 DIY is a passive bookshelves that cost around 300 USD for a pair.

  • Quality of the measurement data is low.
  • Origin of the data is Misc.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • Sensitivity: 89.7dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 82.3Hz (resp. 67.3Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.7dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.12 and would be 7.97 with a perfect subwoofer.
      • Details: NBD: ON 0.279, LW 0.261, SP 0.388, PIR 0.351; SM: SP0.909, PIR0.877; LFQ 1.578, LFX 66Hz
    • Tonality (Preference) Score is 6.22 with an EQ and would be 8.63 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.189, LW 0.17, SP 0.291, PIR 0.243; SM: SP0.936, PIR0.927; LFQ 1.578, LFX 52Hz
  • Link to Original review.
MTG Designs VBS-10.2 DIY
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
3 54.0 0.69 2.99
3 125.0 1.8 -1.77
3 579.0 2.56 1.98
3 600.0 1.66 -1.5
3 4654.0 2.98 -1.66
3 7566.0 2.98 -1.32
3 10341.0 2.72 -1.65
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

MTG Designs VBS-10.2 DIY filters_auto_eq

AutomaticEQ

MTG Designs VBS-10.2 DIY filters_eq_full

Target v.s. EQ

MTG Designs VBS-10.2 DIY
Graphic EQ 15 bands
Set preamp gain to: -1.1dB.
Type Freq Q Gain
3 25.0 2.14 0.75
3 40.0 2.14 0.75
3 63.0 2.14 0.75
3 100.0 2.14 0.25
3 160.0 2.14 0.0
3 250.0 2.14 0.25
3 400.0 2.14 0.0
3 630.0 2.14 0.25
3 1000.0 2.14 0.25
3 1600.0 2.14 0.5
3 2500.0 2.14 0.25
3 4000.0 2.14 0.25
3 6300.0 2.14 0.25
3 10000.0 2.14 0.0
3 16000.0 2.14 -0.25
Download

These EQ is designed for a 15 bands graphical EQ.

MTG Designs VBS-10.2 DIY
Graphic EQ 31 bands
Set preamp gain to: -1.2dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.75
3 31.0 4.32 0.75
3 40.0 4.32 0.75
3 50.0 4.32 0.75
3 63.0 4.32 0.75
3 80.0 4.32 0.75
3 100.0 4.32 0.25
3 125.0 4.32 0.0
3 160.0 4.32 0.0
3 200.0 4.32 0.25
3 250.0 4.32 0.25
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.25
3 630.0 4.32 0.25
3 800.0 4.32 0.0
3 1000.0 4.32 0.25
3 1250.0 4.32 0.5
3 1600.0 4.32 0.5
3 2000.0 4.32 0.25
3 2500.0 4.32 0.25
3 3150.0 4.32 0.5
3 4000.0 4.32 0.25
3 5000.0 4.32 0.0
3 6300.0 4.32 0.25
3 8000.0 4.32 0.0
3 10000.0 4.32 0.0
3 12000.0 4.32 0.25
3 16000.0 4.32 -0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

MTG Designs VBS-10.2 DIY: comparison between EQs
MTG Designs VBS-10.2 DIY

Comparison betweens various EQs

MTG Designs VBS-10.2 DIY

Improvements made by EQ
