What we know about the measurement:

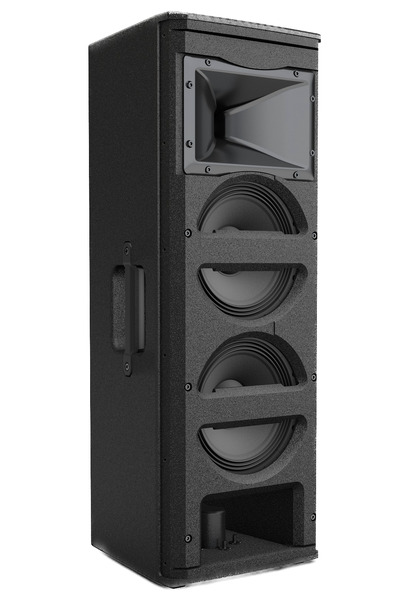

LD Systems Stinger 28-A-G3 is an active liveportable that cost around 770 USD each.

  • Quality of the measurement data is medium.
  • Origin of the data is LD Systems.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 56.0Hz (resp. 51.5Hz).
  • Reference level is normalised to 0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.7dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 1.5 and would be 3.98 with a perfect subwoofer.
      • Details: NBD: ON 0.825, LW 0.729, SP 0.712, PIR 0.697; SM: SP0.502, PIR0.19; LFQ 1.228, LFX 54Hz
    • Tonality (Preference) Score is 4.16 with an EQ and would be 6.69 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.615, LW 0.533, SP 0.534, PIR 0.494; SM: SP0.905, PIR0.871; LFQ 1.228, LFX 56Hz
  • Note: measured with broadband noise at 2m..
  • Vendor specifications:
    • Dispersion: 90° horizontal and 50° vertical.
    • SPL
      • peak: 131 dB
    • Size
      • Width 270mm
      • Height 756mm
      • Depth 290 mm)
    • Weight 20.5 kg
LD Systems Stinger 28-A-G3
AutomaticEQ (IIR)
Set preamp gain to: -3.1dB.
Type Freq Q Gain
3 84.0 1.3 -2.99
3 207.0 2.98 2.86
3 331.0 2.96 1.81
3 584.0 2.99 2.78
3 714.0 2.89 -2.99
3 1180.0 2.29 2.66
3 1884.0 1.86 2.98
3 2302.0 2.97 -2.9
6 4803.0 0.98 -2.7
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

LD Systems Stinger 28-A-G3 filters_auto_eq

AutomaticEQ

LD Systems Stinger 28-A-G3 filters_eq_full

Target v.s. EQ

LD Systems Stinger 28-A-G3
Graphic EQ 15 bands
Set preamp gain to: -0.6dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 -0.25
3 100.0 2.14 -0.5
3 160.0 2.14 0.0
3 250.0 2.14 0.25
3 400.0 2.14 0.25
3 630.0 2.14 0.0
3 1000.0 2.14 0.5
3 1600.0 2.14 0.5
3 2500.0 2.14 0.0
3 4000.0 2.14 0.0
3 6300.0 2.14 -0.25
3 10000.0 2.14 -0.25
3 16000.0 2.14 -0.25
Download

These EQ is designed for a 15 bands graphical EQ.

LD Systems Stinger 28-A-G3
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.25
3 31.0 4.32 0.25
3 40.0 4.32 0.25
3 50.0 4.32 0.25
3 63.0 4.32 -0.25
3 80.0 4.32 -0.5
3 100.0 4.32 -0.25
3 125.0 4.32 0.0
3 160.0 4.32 0.0
3 200.0 4.32 0.5
3 250.0 4.32 0.25
3 315.0 4.32 0.25
3 400.0 4.32 0.25
3 500.0 4.32 0.25
3 630.0 4.32 0.0
3 800.0 4.32 0.0
3 1000.0 4.32 0.5
3 1250.0 4.32 0.5
3 1600.0 4.32 0.5
3 2000.0 4.32 0.25
3 2500.0 4.32 0.0
3 3150.0 4.32 0.25
3 4000.0 4.32 0.0
3 5000.0 4.32 0.0
3 6300.0 4.32 -0.25
3 8000.0 4.32 0.0
3 10000.0 4.32 0.0
3 12000.0 4.32 -0.25
3 16000.0 4.32 0.0
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
