What we know about the measurement:

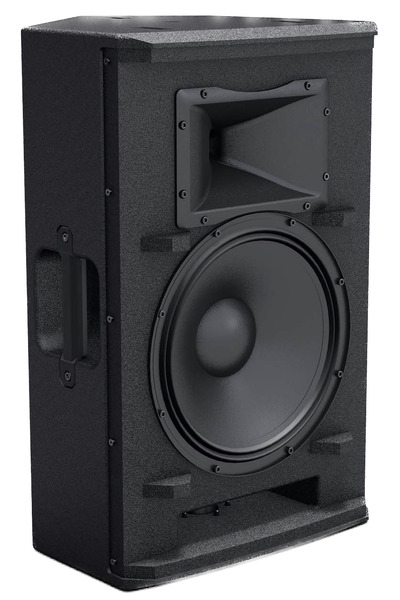

LD Systems Stinger 12-A-G3 is an active liveportable that cost around 745 USD each.

  • Quality of the measurement data is medium.
  • Origin of the data is LD Systems.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 45.0Hz (resp. 42.5Hz).
  • Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.24 and would be 5.26 with a perfect subwoofer.
      • Details: NBD: ON 0.668, LW 0.68, SP 0.696, PIR 0.648; SM: SP0.708, PIR0.509; LFQ 1.503, LFX 42Hz
    • Tonality (Preference) Score is 5.12 with an EQ and would be 7.13 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.509, LW 0.481, SP 0.525, PIR 0.453; SM: SP0.928, PIR0.894; LFQ 1.503, LFX 42Hz
  • Note: measured with broadband noise at 2m..
  • Vendor specifications:
    • Dispersion: 90° horizontal and 50° vertical.
    • SPL
      • peak: 131 dB
    • Size
      • Width 390mm
      • Height 627mm
      • Depth 377mm
    • Weight 20.1kg
LD Systems Stinger 12-A-G3
AutomaticEQ (IIR)
Set preamp gain to: -1.4dB.
Type Freq Q Gain
PK 69.0 2.73 -6.72
PK 92.0 1.92 -5.84
PK 197.0 2.04 2.09
PK 689.0 2.98 -2.33
PK 6585.0 2.96 -2.58
PK 11476.0 0.97 -3.83
PK 15150.0 2.76 -0.85
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

LD Systems Stinger 12-A-G3 filters_auto_eq

AutomaticEQ

LD Systems Stinger 12-A-G3 filters_eq_full

Target v.s. EQ

LD Systems Stinger 12-A-G3
Graphic EQ 15 bands
Set preamp gain to: -0.6dB.
Type Freq Q Gain
PK 25.0 2.14 0.5
PK 40.0 2.14 0.5
PK 63.0 2.14 -1.0
PK 100.0 2.14 -1.0
PK 160.0 2.14 0.0
PK 250.0 2.14 0.25
PK 400.0 2.14 0.25
PK 630.0 2.14 0.0
PK 1000.0 2.14 0.25
PK 1600.0 2.14 0.25
PK 2500.0 2.14 0.5
PK 4000.0 2.14 0.25
PK 6300.0 2.14 0.0
PK 10000.0 2.14 -0.25
PK 16000.0 2.14 0.0
Download

These EQ is designed for a 15 bands graphical EQ.

LD Systems Stinger 12-A-G3
Graphic EQ 31 bands
Set preamp gain to: -0.4dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.25
PK 31.0 4.32 0.25
PK 40.0 4.32 0.25
PK 50.0 4.32 0.0
PK 63.0 4.32 -0.75
PK 80.0 4.32 -1.0
PK 100.0 4.32 -0.75
PK 125.0 4.32 -0.25
PK 160.0 4.32 0.0
PK 200.0 4.32 0.25
PK 250.0 4.32 0.25
PK 315.0 4.32 0.0
PK 400.0 4.32 0.25
PK 500.0 4.32 0.0
PK 630.0 4.32 0.0
PK 800.0 4.32 -0.25
PK 1000.0 4.32 0.0
PK 1250.0 4.32 0.0
PK 1600.0 4.32 0.25
PK 2000.0 4.32 0.25
PK 2500.0 4.32 0.25
PK 3150.0 4.32 0.25
PK 4000.0 4.32 0.25
PK 5000.0 4.32 -0.25
PK 6300.0 4.32 -0.25
PK 8000.0 4.32 0.0
PK 10000.0 4.32 0.0
PK 12000.0 4.32 -0.25
PK 16000.0 4.32 0.0
PK 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
