What we know about the measurement:

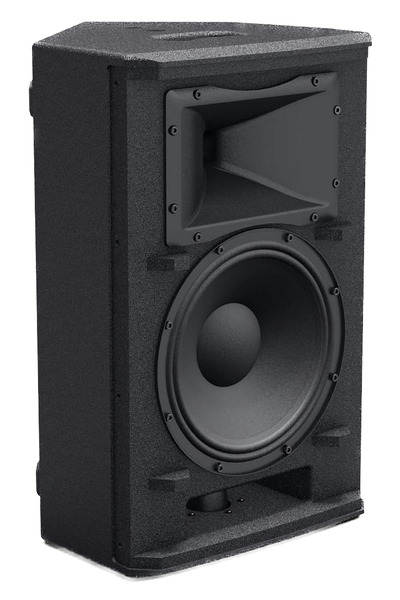

LD Systems Stinger 10-A-G3 is an active liveportable that cost around 500 USD each.

  • Quality of the measurement data is medium.
  • Origin of the data is LD Systems.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 56.0Hz (resp. 54.5Hz).
  • Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.5dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.12 and would be 6.44 with a perfect subwoofer.
      • Details: NBD: ON 0.571, LW 0.515, SP 0.553, PIR 0.487; SM: SP0.824, PIR0.707; LFQ 1.151, LFX 49Hz
    • Tonality (Preference) Score is 5.41 with an EQ and would be 7.63 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.474, LW 0.404, SP 0.393, PIR 0.33; SM: SP0.942, PIR0.912; LFQ 1.034, LFX 47Hz
  • Note: measured with broadband noise at 2m..
  • Vendor specifications:
    • Dispersion: 90° horizontal and 50° vertical.
    • SPL
      • peak: 127 dB
    • Size
      • Width 325mm
      • Height 527mm
      • Depth 318mm
    • Weight 12.7kg
LD Systems Stinger 10-A-G3
AutomaticEQ (IIR)
Set preamp gain to: -4.5dB.
Type Freq Q Gain
PK 44.0 2.93 3.0
PK 56.0 0.52 2.99
PK 92.0 1.37 -7.09
PK 739.0 2.99 -2.43
PK 2491.0 2.95 2.11
PK 7308.0 2.99 -2.8
PK 12736.0 1.82 -3.06
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

LD Systems Stinger 10-A-G3 filters_auto_eq

AutomaticEQ

LD Systems Stinger 10-A-G3 filters_eq_full

Target v.s. EQ

LD Systems Stinger 10-A-G3
Graphic EQ 15 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
PK 25.0 2.14 0.5
PK 40.0 2.14 0.5
PK 63.0 2.14 0.0
PK 100.0 2.14 -0.75
PK 160.0 2.14 -0.25
PK 250.0 2.14 0.0
PK 400.0 2.14 0.0
PK 630.0 2.14 0.0
PK 1000.0 2.14 0.25
PK 1600.0 2.14 0.5
PK 2500.0 2.14 0.75
PK 4000.0 2.14 0.5
PK 6300.0 2.14 0.25
PK 10000.0 2.14 0.0
PK 16000.0 2.14 0.0
Download

These EQ is designed for a 15 bands graphical EQ.

LD Systems Stinger 10-A-G3
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.5
PK 31.0 4.32 0.5
PK 40.0 4.32 0.5
PK 50.0 4.32 0.5
PK 63.0 4.32 0.0
PK 80.0 4.32 -0.5
PK 100.0 4.32 -0.75
PK 125.0 4.32 -0.5
PK 160.0 4.32 -0.25
PK 200.0 4.32 0.0
PK 250.0 4.32 0.0
PK 315.0 4.32 0.0
PK 400.0 4.32 0.0
PK 500.0 4.32 0.0
PK 630.0 4.32 0.0
PK 800.0 4.32 -0.25
PK 1000.0 4.32 0.0
PK 1250.0 4.32 0.25
PK 1600.0 4.32 0.5
PK 2000.0 4.32 0.5
PK 2500.0 4.32 0.5
PK 3150.0 4.32 0.25
PK 4000.0 4.32 0.25
PK 5000.0 4.32 0.25
PK 6300.0 4.32 0.0
PK 8000.0 4.32 0.0
PK 10000.0 4.32 0.0
PK 12000.0 4.32 -0.25
PK 16000.0 4.32 0.0
PK 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
