- Quality of the measurement data is high.
- Origin of the data is ErinsAudioCorner.
- Format of the data is generated by a Klippel NFS .
-
Sensitivity:
- Measured: 88.9 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 71.8Hz (resp. 54.2Hz).
- Reference level is normalised to 0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 3.2dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 3.99
and would be 6.25 with a
perfect subwoofer.
- Details: NBD: ON 0.494, LW 0.403, SP 0.429, PIR 0.374; SM: SP0.83, PIR0.397; LFQ 0.953, LFX 48Hz
- Tonality (Preference) Score is 6.23
with an EQ and would be 8.11 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.414, LW 0.335, SP 0.316, PIR 0.255; SM: SP0.978, PIR0.96; LFQ 1.01, LFX 39Hz
- Tonality (Preference) Score is 3.99
and would be 6.25 with a
perfect subwoofer.
- Vertical measurement
- Link to Original review.

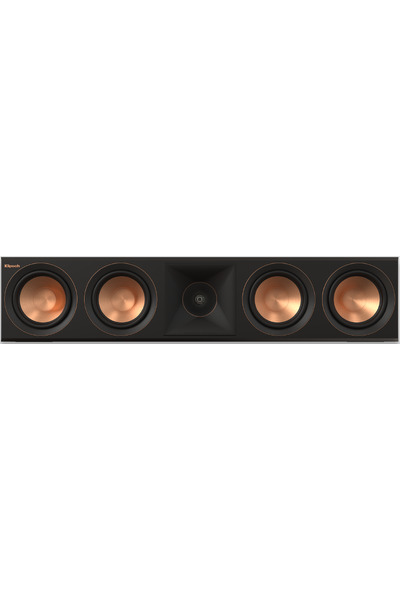

Klipsch RP-504C II is a passive center that cost around 800 USD
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -2.8dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 44.0 | 0.59 | 2.99 |
| PK | 102.0 | 1.51 | -1.75 |
| PK | 235.0 | 2.94 | 1.23 |
| PK | 382.0 | 2.99 | 1.72 |
| PK | 1586.0 | 2.99 | 1.91 |
| PK | 4342.0 | 0.4 | -1.86 |
| PK | 14134.0 | 0.8 | -4.29 |
| Download | |||
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| Graphic EQ 15 bands | |||
| Set preamp gain to: -0.6dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 25.0 | 2.14 | 0.25 |
| PK | 40.0 | 2.14 | 0.25 |
| PK | 63.0 | 2.14 | 0.25 |
| PK | 100.0 | 2.14 | -0.25 |
| PK | 160.0 | 2.14 | 0.0 |
| PK | 250.0 | 2.14 | 0.25 |
| PK | 400.0 | 2.14 | 0.5 |
| PK | 630.0 | 2.14 | 0.25 |
| PK | 1000.0 | 2.14 | 0.25 |
| PK | 1600.0 | 2.14 | 0.5 |
| PK | 2500.0 | 2.14 | 0.0 |
| PK | 4000.0 | 2.14 | -0.25 |
| PK | 6300.0 | 2.14 | -0.5 |
| PK | 10000.0 | 2.14 | -0.5 |
| PK | 16000.0 | 2.14 | -0.25 |
| Download | |||
This EQ is designed for a 15 bands graphical EQ.
| Graphic EQ 31 bands | |||
| Set preamp gain to: -0.4dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 20.0 | 4.32 | 0.0 |
| PK | 25.0 | 4.32 | 0.25 |
| PK | 31.0 | 4.32 | 0.25 |
| PK | 40.0 | 4.32 | 0.25 |
| PK | 50.0 | 4.32 | 0.25 |
| PK | 63.0 | 4.32 | 0.25 |
| PK | 80.0 | 4.32 | 0.25 |
| PK | 100.0 | 4.32 | 0.0 |
| PK | 125.0 | 4.32 | -0.25 |
| PK | 160.0 | 4.32 | 0.0 |
| PK | 200.0 | 4.32 | 0.0 |
| PK | 250.0 | 4.32 | 0.25 |
| PK | 315.0 | 4.32 | 0.25 |
| PK | 400.0 | 4.32 | 0.25 |
| PK | 500.0 | 4.32 | 0.0 |
| PK | 630.0 | 4.32 | -0.25 |
| PK | 800.0 | 4.32 | 0.0 |
| PK | 1000.0 | 4.32 | 0.0 |
| PK | 1250.0 | 4.32 | 0.25 |
| PK | 1600.0 | 4.32 | 0.0 |
| PK | 2000.0 | 4.32 | -0.25 |
| PK | 2500.0 | 4.32 | -0.25 |
| PK | 3150.0 | 4.32 | -0.25 |
| PK | 4000.0 | 4.32 | -0.25 |
| PK | 5000.0 | 4.32 | -0.25 |
| PK | 6300.0 | 4.32 | -0.5 |
| PK | 8000.0 | 4.32 | -0.5 |
| PK | 10000.0 | 4.32 | -0.5 |
| PK | 12000.0 | 4.32 | -0.5 |
| PK | 16000.0 | 4.32 | -0.25 |
| PK | 20000.0 | 4.32 | 0.0 |
| Download | |||
