Measurements for speaker Klipsch Heresy IV

Data

& EQ

Data & EQ
Ref.

Graphs

Reference graphs
EQed

Graphs

EQed graphs
Ref.

v.s. EQ

Reference v.s. EQed

What we know about the measurement:

Klipsch Heresy IV is a passive floorstanders that cost around 2000 USD for a pair.

Quality of the measurement data is high.
Origin of the data is ErinsAudioCorner.
Format of the data is generated by a Klippel NFS .
Sensitivity: 93.5dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
-3dB (resp. -6db) point v.s. reference is at 77.6Hz (resp. 64.5Hz).
Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
Frequency deviation is 4.1dB over the same frequency range.
Directivity
- Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
- Vertical directivity is (-20.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
Tonality (Preference) Score
- Tonality (Preference) Score is 1.26 and would be 4.01 with a perfect subwoofer.
  - Details: NBD: ON 0.801, LW 0.674, SP 0.66, PIR 0.604; SM: SP0.445, PIR0.057; LFQ 1.562, LFX 62Hz
- Tonality (Preference) Score is 4.43 with an EQ and would be 6.63 with a perfect subwoofer and the same EQ.
  - Details: NBD: ON 0.651, LW 0.536, SP 0.553, PIR 0.478; SM: SP0.89, PIR0.863; LFQ 1.378, LFX 46Hz
Link to original Review: eac review. .

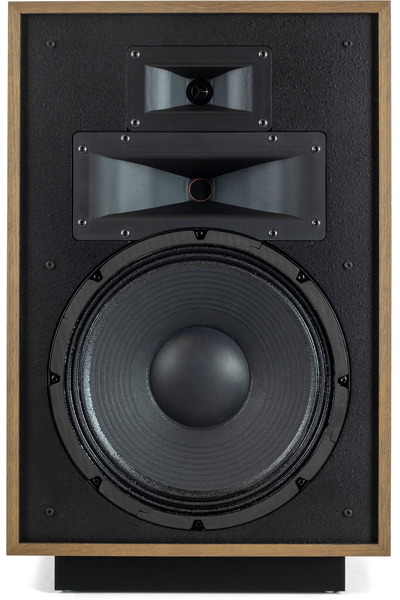

Klipsch Heresy IV
