- Quality of the measurement data is medium.
- Origin of the data is KEF.
- Format of the data is .
-
Sensitivity:
- Measured: 87.9 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 40.0Hz (resp. 34.3Hz).
- Reference level is normalised to 0.8dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 1.8dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 6.66
and would be 8.2 with a
perfect subwoofer.
- Details: NBD: ON 0.343, LW 0.275, SP 0.349, PIR 0.281; SM: SP0.964, PIR0.954; LFQ 1.1, LFX 32Hz
- Tonality (Preference) Score is 7.15
with an EQ and would be 8.48 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.293, LW 0.231, SP 0.307, PIR 0.232; SM: SP0.971, PIR0.957; LFQ 1.1, LFX 29Hz
- Tonality (Preference) Score is 6.66
and would be 8.2 with a
perfect subwoofer.
- Note: the off-axis average curves are truncated at 200Hz as this is close to the LF cut-off limit of our anechoic chamber. The on-axis LF response has been compensated using ground plane measurements carried out in free-field and is therefore valid only for that singular curve..

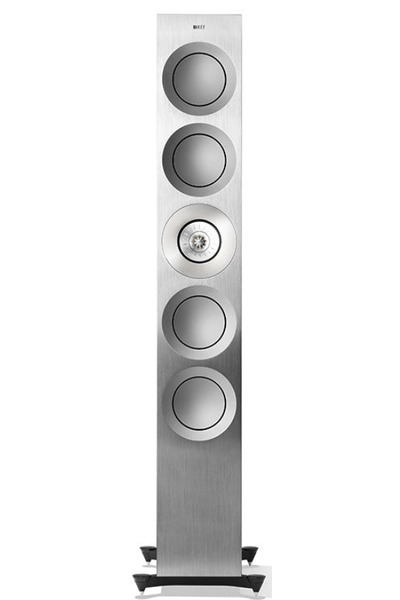

KEF Reference 5 Meta is a passive floorstanders that cost around 20000 USD for a pair.
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -2.7dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 32.0 | 1.12 | 2.98 |
| PK | 80.0 | 1.28 | -1.88 |
| PK | 184.0 | 0.74 | -1.75 |
| PK | 643.0 | 1.48 | -1.11 |
| PK | 1381.0 | 3.0 | -1.03 |
| PK | 5536.0 | 1.85 | -0.52 |
| PK | 9001.0 | 2.86 | -0.96 |
| Download | |||
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| Graphic EQ 15 bands | |||
| Set preamp gain to: -0.3dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 25.0 | 2.14 | 0.25 |
| PK | 40.0 | 2.14 | 0.25 |
| PK | 63.0 | 2.14 | 0.0 |
| PK | 100.0 | 2.14 | -0.25 |
| PK | 160.0 | 2.14 | -0.25 |
| PK | 250.0 | 2.14 | -0.25 |
| PK | 400.0 | 2.14 | 0.0 |
| PK | 630.0 | 2.14 | 0.0 |
| PK | 1000.0 | 2.14 | 0.25 |
| PK | 1600.0 | 2.14 | 0.0 |
| PK | 2500.0 | 2.14 | 0.0 |
| PK | 4000.0 | 2.14 | 0.0 |
| PK | 6300.0 | 2.14 | 0.0 |
| PK | 10000.0 | 2.14 | 0.25 |
| PK | 16000.0 | 2.14 | 0.25 |
| Download | |||
This EQ is designed for a 15 bands graphical EQ.
| Graphic EQ 31 bands | |||
| Set preamp gain to: -0.7dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 20.0 | 4.32 | 0.0 |
| PK | 25.0 | 4.32 | 0.5 |
| PK | 31.0 | 4.32 | 0.5 |
| PK | 40.0 | 4.32 | 0.5 |
| PK | 50.0 | 4.32 | 0.0 |
| PK | 63.0 | 4.32 | -0.25 |
| PK | 80.0 | 4.32 | -0.5 |
| PK | 100.0 | 4.32 | -0.5 |
| PK | 125.0 | 4.32 | -0.5 |
| PK | 160.0 | 4.32 | -0.5 |
| PK | 200.0 | 4.32 | -0.5 |
| PK | 250.0 | 4.32 | -0.25 |
| PK | 315.0 | 4.32 | -0.25 |
| PK | 400.0 | 4.32 | -0.25 |
| PK | 500.0 | 4.32 | -0.25 |
| PK | 630.0 | 4.32 | -0.25 |
| PK | 800.0 | 4.32 | -0.25 |
| PK | 1000.0 | 4.32 | 0.0 |
| PK | 1250.0 | 4.32 | -0.25 |
| PK | 1600.0 | 4.32 | 0.0 |
| PK | 2000.0 | 4.32 | 0.25 |
| PK | 2500.0 | 4.32 | -0.25 |
| PK | 3150.0 | 4.32 | 0.0 |
| PK | 4000.0 | 4.32 | 0.0 |
| PK | 5000.0 | 4.32 | 0.0 |
| PK | 6300.0 | 4.32 | -0.25 |
| PK | 8000.0 | 4.32 | 0.0 |
| PK | 10000.0 | 4.32 | 0.0 |
| PK | 12000.0 | 4.32 | 0.0 |
| PK | 16000.0 | 4.32 | 0.0 |
| PK | 20000.0 | 4.32 | 0.0 |
| Download | |||
