- Quality of the measurement data is medium.
- Origin of the data is KEF.
- Format of the data is .
-
Sensitivity:
- Measured: 86.8 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 42.2Hz (resp. 35.3Hz).
- Reference level is normalised to 0.8dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 1.4dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 6.69
and would be 8.31 with a
perfect subwoofer.
- Details: NBD: ON 0.321, LW 0.251, SP 0.331, PIR 0.262; SM: SP0.97, PIR0.952; LFQ 1.034, LFX 34Hz
- Tonality (Preference) Score is 7.17
with an EQ and would be 8.63 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.282, LW 0.199, SP 0.262, PIR 0.195; SM: SP0.977, PIR0.962; LFQ 0.861, LFX 31Hz
- Tonality (Preference) Score is 6.69
and would be 8.31 with a
perfect subwoofer.
- Note: the off-axis average curves are truncated at 200Hz as this is close to the LF cut-off limit of our anechoic chamber. The on-axis LF response has been compensated using ground plane measurements carried out in free-field and is therefore valid only for that singular curve..

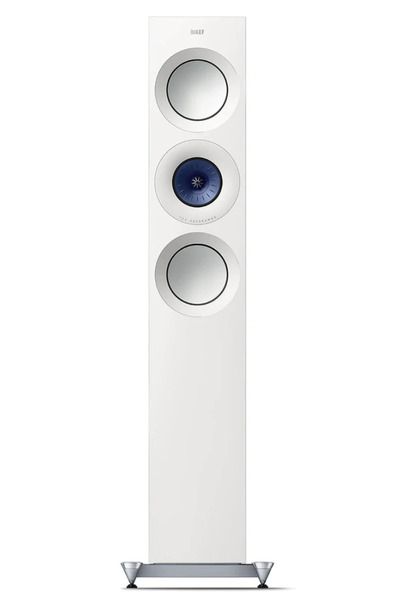

KEF Reference 3 Meta is a passive floorstanders that cost around 13500 USD for a pair.
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -2.5dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 29.0 | 1.43 | 2.61 |
| PK | 97.0 | 1.29 | -1.86 |
| PK | 227.0 | 2.09 | -0.79 |
| PK | 942.0 | 2.95 | 0.79 |
| PK | 15135.0 | 0.49 | 1.0 |
| PK | 3061.0 | 2.96 | 0.75 |
| PK | 6183.0 | 2.94 | -0.75 |
| PK | 532.0 | 2.97 | -0.75 |
| PK | 1312.0 | 2.98 | -0.75 |
| Download | |||
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| Graphic EQ 15 bands | |||
| Set preamp gain to: -0.3dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 25.0 | 2.14 | 0.25 |
| PK | 40.0 | 2.14 | 0.25 |
| PK | 63.0 | 2.14 | 0.0 |
| PK | 100.0 | 2.14 | -0.25 |
| PK | 160.0 | 2.14 | -0.25 |
| PK | 250.0 | 2.14 | 0.0 |
| PK | 400.0 | 2.14 | 0.0 |
| PK | 630.0 | 2.14 | 0.0 |
| PK | 1000.0 | 2.14 | 0.25 |
| PK | 1600.0 | 2.14 | 0.0 |
| PK | 2500.0 | 2.14 | 0.0 |
| PK | 4000.0 | 2.14 | 0.0 |
| PK | 6300.0 | 2.14 | 0.0 |
| PK | 10000.0 | 2.14 | 0.25 |
| PK | 16000.0 | 2.14 | 0.25 |
| Download | |||
This EQ is designed for a 15 bands graphical EQ.
| Graphic EQ 31 bands | |||
| Set preamp gain to: -0.4dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 20.0 | 4.32 | 0.0 |
| PK | 25.0 | 4.32 | 0.25 |
| PK | 31.0 | 4.32 | 0.25 |
| PK | 40.0 | 4.32 | 0.25 |
| PK | 50.0 | 4.32 | 0.25 |
| PK | 63.0 | 4.32 | 0.0 |
| PK | 80.0 | 4.32 | -0.25 |
| PK | 100.0 | 4.32 | -0.25 |
| PK | 125.0 | 4.32 | -0.25 |
| PK | 160.0 | 4.32 | -0.25 |
| PK | 200.0 | 4.32 | 0.0 |
| PK | 250.0 | 4.32 | 0.0 |
| PK | 315.0 | 4.32 | 0.0 |
| PK | 400.0 | 4.32 | 0.0 |
| PK | 500.0 | 4.32 | 0.0 |
| PK | 630.0 | 4.32 | 0.0 |
| PK | 800.0 | 4.32 | 0.0 |
| PK | 1000.0 | 4.32 | 0.25 |
| PK | 1250.0 | 4.32 | 0.0 |
| PK | 1600.0 | 4.32 | 0.0 |
| PK | 2000.0 | 4.32 | 0.25 |
| PK | 2500.0 | 4.32 | 0.0 |
| PK | 3150.0 | 4.32 | 0.25 |
| PK | 4000.0 | 4.32 | 0.0 |
| PK | 5000.0 | 4.32 | 0.0 |
| PK | 6300.0 | 4.32 | 0.0 |
| PK | 8000.0 | 4.32 | 0.25 |
| PK | 10000.0 | 4.32 | 0.25 |
| PK | 12000.0 | 4.32 | 0.25 |
| PK | 16000.0 | 4.32 | 0.25 |
| PK | 20000.0 | 4.32 | 0.0 |
| Download | |||
