What we know about the measurement:

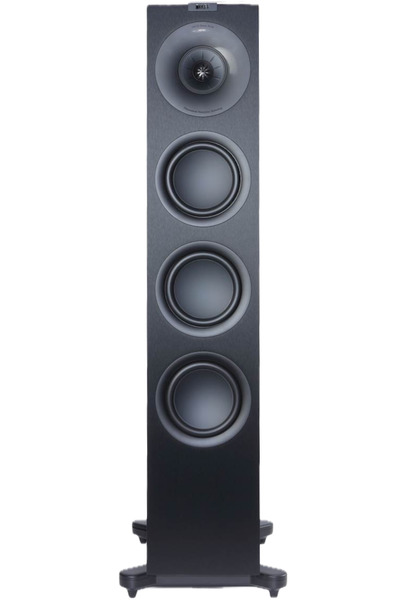

KEF Q11 Meta is a passive floorstanders that cost around 2200 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 89.2dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 58.6Hz (resp. 47.6Hz).
  • Reference level is normalised to -0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-50.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 6.9 and would be 8.21 with a perfect subwoofer.
      • Details: NBD: ON 0.371, LW 0.33, SP 0.289, PIR 0.267; SM: SP0.992, PIR0.974; LFQ 1.011, LFX 29Hz
    • Tonality (Preference) Score is 7.22 with an EQ and would be 8.34 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.35, LW 0.301, SP 0.256, PIR 0.231; SM: SP0.989, PIR0.96; LFQ 1.011, LFX 26Hz
  • Link to original Review: yt review. .
  • Vendor specifications:
    • Sensitivity 89 dB
    • Impedance 4 Ohm
    • SPL
      • peak: 113 dB
    • Size
      • Width 317mm
      • Height 1112mm
      • Depth 380mm
    • Weight 22.5kg
KEF Q11 Meta
AutomaticEQ (IIR)
Set preamp gain to: -2.8dB.
Type Freq Q Gain
PK 27.0 1.76 2.87
PK 49.0 2.71 2.19
PK 121.0 0.73 -2.27
PK 382.0 2.97 -1.03
PK 600.0 2.99 -1.23
PK 1083.0 3.0 3.0
PK 1161.0 1.71 -3.05
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

KEF Q11 Meta filters_auto_eq

AutomaticEQ

KEF Q11 Meta filters_eq_full

Target v.s. EQ
