- Quality of the measurement data is high.
- Origin of the data is ErinsAudioCorner.
- Format of the data is generated by a Klippel NFS .
- -3dB (resp. -6db) point v.s. reference is at 56.4Hz (resp. 50.5Hz).
- Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 3.4dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.06
and would be 7.29 with a
perfect subwoofer.
- Details: NBD: ON 0.498, LW 0.401, SP 0.459, PIR 0.412; SM: SP0.943, PIR0.897; LFQ 0.399, LFX 47Hz
- Tonality (Preference) Score is 5.48
with an EQ and would be 7.55 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.45, LW 0.353, SP 0.44, PIR 0.364; SM: SP0.943, PIR0.898; LFQ 0.399, LFX 43Hz
- Tonality (Preference) Score is 5.06
and would be 7.29 with a
perfect subwoofer.
- Link to original Review: eac review. .

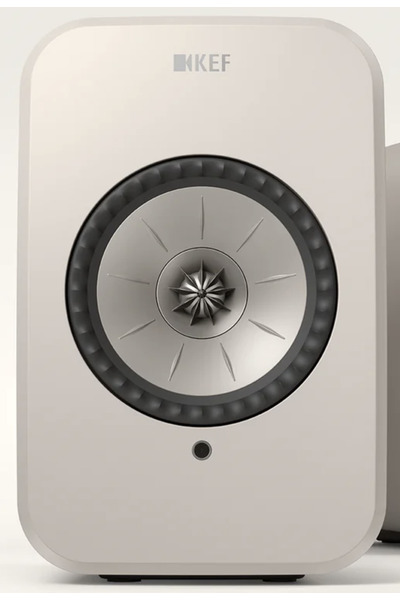

KEF LSX II LT is an active bookshelves that cost around 1000 USD for a pair.
Vendor specifications
- SPL
- peak: 102 dB
- Size
- Width 155mm
- Height 240mm
- Depth 180mm
- Weight 6.8kg
Directivity (-6dB)
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -3.4dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 44.0 | 2.35 | 2.98 |
| PK | 62.0 | 0.51 | 1.06 |
| PK | 98.0 | 0.67 | -1.3 |
| PK | 369.0 | 2.99 | 0.69 |
| PK | 621.0 | 2.83 | -1.36 |
| PK | 910.0 | 1.31 | 2.11 |
| PK | 1010.0 | 2.88 | -2.59 |
| Download | |||
