What we know about the measurement:

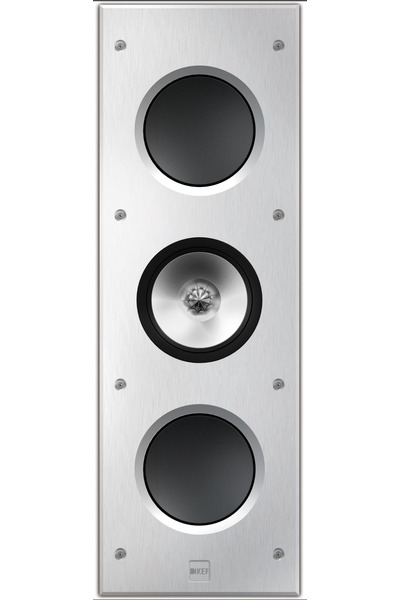

KEF Ci3160RL-THX is a passive inwall that cost around 1400 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 87.6dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 51.3Hz (resp. 41.0Hz).
  • Reference level is normalised to 0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.4dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for inwall speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is 5.59 and would be 7.53 with a perfect subwoofer.
      • Details: NBD: ON 0.409, LW 0.327, SP 0.346, PIR 0.323; SM: SP0.882, PIR0.792; LFQ 0.244, LFX 41Hz
    • Tonality (Preference) Score is 6.93 with an EQ and would be 8.43 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.297, LW 0.222, SP 0.267, PIR 0.226; SM: SP0.934, PIR0.933; LFQ 0.205, LFX 32Hz
  • Link to Original review.
KEF Ci3160RL-THX
AutomaticEQ (IIR)
Set preamp gain to: -2.7dB.
Type Freq Q Gain
3 30.0 1.19 3.0
3 88.0 1.32 -3.55
3 190.0 2.9 0.84
3 470.0 2.92 1.53
3 1700.0 2.25 -1.45
3 6361.0 0.44 -0.84
3 12301.0 1.44 -2.1
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

KEF Ci3160RL-THX filters_auto_eq

AutomaticEQ

KEF Ci3160RL-THX filters_eq_full

Target v.s. EQ

KEF Ci3160RL-THX
Graphic EQ 15 bands
Set preamp gain to: -0.3dB.
Type Freq Q Gain
3 25.0 2.14 0.25
3 40.0 2.14 0.25
3 63.0 2.14 -0.25
3 100.0 2.14 -0.75
3 160.0 2.14 -0.25
3 250.0 2.14 -0.25
3 400.0 2.14 0.0
3 630.0 2.14 0.0
3 1000.0 2.14 -0.25
3 1600.0 2.14 -0.25
3 2500.0 2.14 0.0
3 4000.0 2.14 0.0
3 6300.0 2.14 0.0
3 10000.0 2.14 -0.25
3 16000.0 2.14 0.0
Download

These EQ is designed for a 15 bands graphical EQ.

KEF Ci3160RL-THX
Graphic EQ 31 bands
Set preamp gain to: -0.3dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.25
3 31.0 4.32 0.25
3 40.0 4.32 0.25
3 50.0 4.32 0.25
3 63.0 4.32 -0.25
3 80.0 4.32 -0.5
3 100.0 4.32 -0.5
3 125.0 4.32 -0.25
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 -0.25
3 400.0 4.32 0.0
3 500.0 4.32 0.25
3 630.0 4.32 0.0
3 800.0 4.32 0.0
3 1000.0 4.32 0.0
3 1250.0 4.32 0.0
3 1600.0 4.32 0.0
3 2000.0 4.32 0.0
3 2500.0 4.32 0.0
3 3150.0 4.32 0.0
3 4000.0 4.32 0.0
3 5000.0 4.32 0.0
3 6300.0 4.32 0.25
3 8000.0 4.32 0.0
3 10000.0 4.32 0.0
3 12000.0 4.32 -0.25
3 16000.0 4.32 0.0
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

KEF Ci3160RL-THX: comparison between EQs
KEF Ci3160RL-THX

Comparison betweens various EQs

KEF Ci3160RL-THX

Improvements made by EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
