Measurements for speaker JTR Noesis 210ht

Data

& EQ

Data & EQ
Ref.

Graphs

Reference graphs
EQed

Graphs

EQed graphs
Ref.

v.s. EQ

Reference v.s. EQed

What we know about the measurement:

JTR Noesis 210ht is a passive cinema that cost around 4000 USD for a pair.

Quality of the measurement data is high.
Origin of the data is ErinsAudioCorner.
Format of the data is generated by a Klippel NFS .
Sensitivity: 92.8dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
-3dB (resp. -6db) point v.s. reference is at 79.1Hz (resp. 63.0Hz).
Reference level is normalised to 0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
Frequency deviation is 4.6dB over the same frequency range.
Directivity
- Horizontal directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
- Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
Tonality (Preference) Score
- Tonality (Preference) Score is 2.25 and would be 5.0 with a perfect subwoofer.
  - Details: NBD: ON 0.657, LW 0.607, SP 0.526, PIR 0.527; SM: SP0.586, PIR0.231; LFQ 2.415, LFX 62Hz
- Tonality (Preference) Score is 5.4 with an EQ and would be 7.48 with a perfect subwoofer and the same EQ.
  - Details: NBD: ON 0.486, LW 0.448, SP 0.399, PIR 0.386; SM: SP0.951, PIR0.932; LFQ 2.082, LFX 43Hz
Link to original Review: eac review. Links to other reviews: yt review .

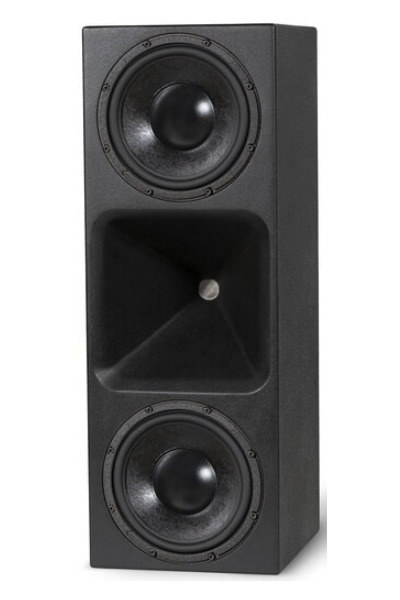

JTR Noesis 210ht

Type	Freq	Q	Gain
AutomaticEQ (IIR)
Set preamp gain to: -3.0dB.
3	42.0	0.95	3.0
3	149.0	2.3	-1.51
3	504.0	2.99	2.99
3	621.0	3.0	-3.96
3	1480.0	3.0	3.0
3	9001.0	3.0	1.54
3	10341.0	0.43	-6.12
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

JTR Noesis 210ht filters_auto_eq

AutomaticEQ

JTR Noesis 210ht filters_eq_full

Target v.s. EQ

JTR Noesis 210ht

Type	Freq	Q	Gain
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
3	25.0	2.14	0.5
3	40.0	2.14	0.5
3	63.0	2.14	0.5
3	100.0	2.14	0.0
3	160.0	2.14	0.0
3	250.0	2.14	0.0
3	400.0	2.14	0.25
3	630.0	2.14	-0.25
3	1000.0	2.14	0.25
3	1600.0	2.14	0.5
3	2500.0	2.14	0.0
3	4000.0	2.14	-0.25
3	6300.0	2.14	-0.5
3	10000.0	2.14	-0.75
3	16000.0	2.14	-0.75
Download

These EQ is designed for a 15 bands graphical EQ.

JTR Noesis 210ht

Type	Freq	Q	Gain
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
3	20.0	4.32	0.0
3	25.0	4.32	0.5
3	31.0	4.32	0.5
3	40.0	4.32	0.5
3	50.0	4.32	0.5
3	63.0	4.32	0.5
3	80.0	4.32	0.5
3	100.0	4.32	0.0
3	125.0	4.32	0.0
3	160.0	4.32	0.0
3	200.0	4.32	0.0
3	250.0	4.32	0.0
3	315.0	4.32	0.25
3	400.0	4.32	0.25
3	500.0	4.32	0.25
3	630.0	4.32	-0.25
3	800.0	4.32	0.25
3	1000.0	4.32	0.25
3	1250.0	4.32	0.25
3	1600.0	4.32	0.5
3	2000.0	4.32	0.0
3	2500.0	4.32	0.0
3	3150.0	4.32	-0.25
3	4000.0	4.32	-0.25
3	5000.0	4.32	-0.25
3	6300.0	4.32	-0.5
3	8000.0	4.32	-0.75
3	10000.0	4.32	-0.75
3	12000.0	4.32	-0.75
3	16000.0	4.32	-0.75
3	20000.0	4.32	0.0
Download

These EQ is designed for a 31 bands graphical EQ.

JTR Noesis 210ht: comparison between EQs

JTR Noesis 210ht

Comparison betweens various EQs

JTR Noesis 210ht

Improvements made by EQ
