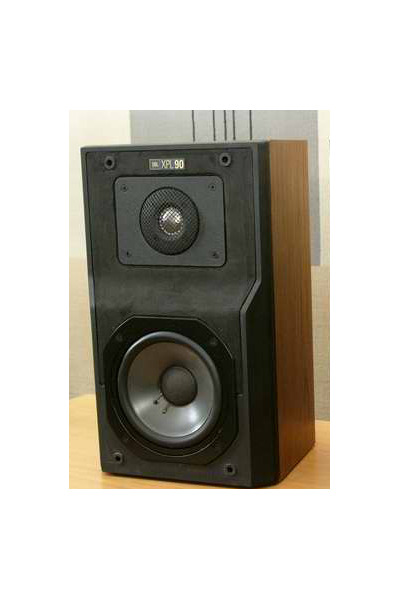

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 85.3dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
-
-3dB (resp. -6db) point v.s. reference is at 77.6Hz (resp. 60.1Hz).
-
Reference level is normalised to -0.4dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 3.3dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-70.0°, 60.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-20.0°, 10.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 3.71
and would be 6.33 with a
perfect subwoofer.
- Details:
NBD: ON 0.541,
LW 0.512, SP
0.489, PIR
0.488; SM:
SP0.85,
PIR0.628; LFQ
0.579, LFX 58Hz
- Tonality (Preference) Score is 6.26
with an EQ and would be 8.62 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.246,
LW 0.235, SP
0.277, PIR
0.224; SM:
SP0.97,
PIR0.961; LFQ 0.579, LFX 51Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -2.6dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
77.0 |
1.26 |
2.59 |
| 3 |
262.0 |
1.48 |
0.76 |
| 3 |
1220.0 |
2.85 |
-2.79 |
| 3 |
1541.0 |
2.82 |
2.85 |
| 3 |
2461.0 |
2.21 |
-1.38 |
| 3 |
3216.0 |
2.64 |
2.82 |
| 3 |
6489.0 |
2.77 |
-2.95 |
| 3 |
7930.0 |
2.45 |
0.83 |
| 3 |
14965.0 |
0.83 |
-2.11 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -1.8dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
347.0 |
10.0 |
0.5 |
| 3 |
379.0 |
23.0 |
-0.5 |
| 3 |
452.0 |
6.0 |
-1.6 |
| 3 |
512.0 |
22.0 |
-1.0 |
| 3 |
572.0 |
11.0 |
-1.2 |
| 3 |
640.0 |
10.0 |
-1.2 |
| 3 |
713.0 |
10.0 |
-1.0 |
| 3 |
994.0 |
5.0 |
-1.3 |
| 3 |
1250.0 |
4.92 |
-2.9 |
| 3 |
1445.0 |
5.0 |
2.2 |
| 3 |
1642.0 |
5.0 |
1.2 |
| 3 |
1950.0 |
27.0 |
0.6 |
| 3 |
2080.0 |
20.0 |
-0.7 |
| 3 |
3123.0 |
5.0 |
2.9 |
| 3 |
3859.0 |
1.855 |
5.7 |
| 3 |
3869.0 |
1.002 |
-5.3 |
| 3 |
6555.0 |
3.33 |
-2.9 |
| 3 |
11935.0 |
1.89 |
-0.6 |
| 3 |
13250.0 |
4.0 |
-0.9 |
| 3 |
15000.0 |
1.0 |
-2.3 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -1.1dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.75 |
| 3 |
40.0 |
2.14 |
0.75 |
| 3 |
63.0 |
2.14 |
0.75 |
| 3 |
100.0 |
2.14 |
0.25 |
| 3 |
160.0 |
2.14 |
0.0 |
| 3 |
250.0 |
2.14 |
0.25 |
| 3 |
400.0 |
2.14 |
0.0 |
| 3 |
630.0 |
2.14 |
0.0 |
| 3 |
1000.0 |
2.14 |
-0.25 |
| 3 |
1600.0 |
2.14 |
0.5 |
| 3 |
2500.0 |
2.14 |
0.25 |
| 3 |
4000.0 |
2.14 |
0.5 |
| 3 |
6300.0 |
2.14 |
-0.5 |
| 3 |
10000.0 |
2.14 |
0.0 |
| 3 |
16000.0 |
2.14 |
0.0 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -1.2dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.75 |
| 3 |
31.0 |
4.32 |
0.75 |
| 3 |
40.0 |
4.32 |
0.75 |
| 3 |
50.0 |
4.32 |
0.75 |
| 3 |
63.0 |
4.32 |
0.75 |
| 3 |
80.0 |
4.32 |
0.75 |
| 3 |
100.0 |
4.32 |
0.25 |
| 3 |
125.0 |
4.32 |
0.0 |
| 3 |
160.0 |
4.32 |
0.0 |
| 3 |
200.0 |
4.32 |
0.25 |
| 3 |
250.0 |
4.32 |
0.25 |
| 3 |
315.0 |
4.32 |
0.0 |
| 3 |
400.0 |
4.32 |
0.0 |
| 3 |
500.0 |
4.32 |
-0.25 |
| 3 |
630.0 |
4.32 |
-0.25 |
| 3 |
800.0 |
4.32 |
0.0 |
| 3 |
1000.0 |
4.32 |
-0.25 |
| 3 |
1250.0 |
4.32 |
-0.25 |
| 3 |
1600.0 |
4.32 |
0.5 |
| 3 |
2000.0 |
4.32 |
0.25 |
| 3 |
2500.0 |
4.32 |
0.25 |
| 3 |
3150.0 |
4.32 |
0.75 |
| 3 |
4000.0 |
4.32 |
0.75 |
| 3 |
5000.0 |
4.32 |
0.25 |
| 3 |
6300.0 |
4.32 |
-0.25 |
| 3 |
8000.0 |
4.32 |
0.25 |
| 3 |
10000.0 |
4.32 |
0.25 |
| 3 |
12000.0 |
4.32 |
0.0 |
| 3 |
16000.0 |
4.32 |
-0.25 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
