What we know about the measurement:

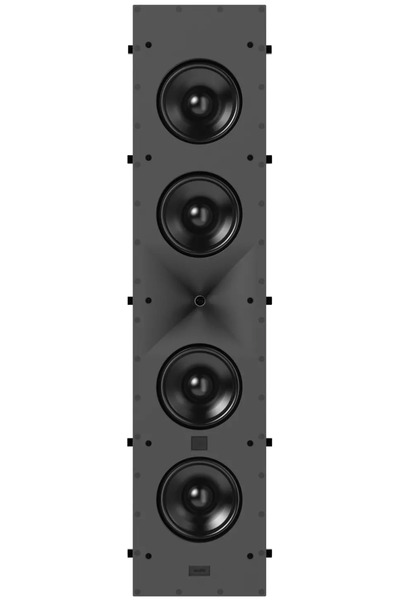

JBL Synthesis SCL-6 is a passive inwall that cost around 1650 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 91.6dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 67.4Hz (resp. 55.7Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.2dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for inwall speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is 4.43 and would be 6.89 with a perfect subwoofer.
      • Details: NBD: ON 0.48, LW 0.388, SP 0.385, PIR 0.378; SM: SP0.811, PIR0.664; LFQ 0.331, LFX 54Hz
    • Tonality (Preference) Score is 5.73 with an EQ and would be 7.87 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.389, LW 0.297, SP 0.321, PIR 0.294; SM: SP0.931, PIR0.879; LFQ 0.268, LFX 45Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Note: Measured far field without grille.
  • Vendor specifications:
    • Dispersion: 80° horizontal and 80° vertical.
    • Sensitivity 91 dB
    • Impedance 4 Ohm
    • Size
      • Width 796mm
      • Height 185mm
      • Depth 97 mm)
    • Weight 11.61 kg
JBL Synthesis SCL-6
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
5 81.0 1.01 2.99
3 187.0 0.54 -2.94
3 237.0 1.76 1.46
3 418.0 1.65 1.87
3 739.0 2.14 1.6
3 998.0 1.17 -0.74
3 2813.0 2.92 1.87
3 3325.0 2.91 -2.07
6 5677.0 1.22 -2.33
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

JBL Synthesis SCL-6 filters_auto_eq

AutomaticEQ

JBL Synthesis SCL-6 filters_eq_full

Target v.s. EQ

JBL Synthesis SCL-6
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 -0.25
3 160.0 2.14 -0.5
3 250.0 2.14 -0.25
3 400.0 2.14 0.0
3 630.0 2.14 0.0
3 1000.0 2.14 -0.25
3 1600.0 2.14 0.0
3 2500.0 2.14 0.0
3 4000.0 2.14 0.0
3 6300.0 2.14 -0.25
3 10000.0 2.14 -0.25
3 16000.0 2.14 -0.25
Download

These EQ is designed for a 15 bands graphical EQ.

JBL Synthesis SCL-6
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.0
3 100.0 4.32 -0.25
3 125.0 4.32 -0.5
3 160.0 4.32 -0.5
3 200.0 4.32 -0.25
3 250.0 4.32 -0.25
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.0
3 800.0 4.32 0.0
3 1000.0 4.32 -0.25
3 1250.0 4.32 0.0
3 1600.0 4.32 0.0
3 2000.0 4.32 0.0
3 2500.0 4.32 0.25
3 3150.0 4.32 0.0
3 4000.0 4.32 0.0
3 5000.0 4.32 0.0
3 6300.0 4.32 -0.25
3 8000.0 4.32 -0.25
3 10000.0 4.32 0.25
3 12000.0 4.32 -0.25
3 16000.0 4.32 0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

JBL Synthesis SCL-6: comparison between EQs
JBL Synthesis SCL-6

Comparison betweens various EQs

JBL Synthesis SCL-6

Improvements made by EQ
