What we know about the measurement:

JBL Synthesis SCL-5 is a passive inwall that cost around 2200 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 87.3dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
  • -3dB (resp. -6db) point v.s. reference is at 74.7Hz (resp. 51.3Hz).
  • Reference level is normalised to -0.5dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 25.0dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-10.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-70.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for inwall speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is 1.72 and would be 4.08 with a perfect subwoofer.
      • Details: NBD: ON 1.292, LW 0.999, SP 0.504, PIR 0.564; SM: SP0.64, PIR0.563; LFQ 0.044, LFX 51Hz
    • Tonality (Preference) Score is 5.13 with an EQ and would be 6.25 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 1.01, LW 0.721, SP 0.35, PIR 0.328; SM: SP0.886, PIR0.892; LFQ 0.03, LFX 26Hz
  • Link to Original review.
  • Vendor specifications:
    • Dispersion: 120° horizontal and 60° vertical.
    • Sensitivity 86 dB
    • Impedance 6 Ohm
    • Size
      • Width 318mm
      • Height 318mm
      • Depth 152 mm)
    • Weight 3.9 kg

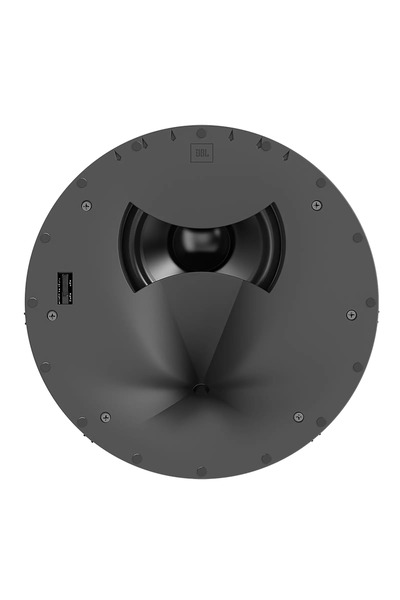

JBL Synthesis SCL-5
AutomaticEQ (IIR)
Set preamp gain to: -5.0dB.
Type Freq Q Gain
3 27.0 1.19 2.93
3 77.0 0.25 2.94
3 172.0 1.04 -1.14
3 689.0 2.49 -2.65
3 910.0 2.55 -4.88
3 1429.0 3.0 3.0
3 2765.0 1.85 -4.57
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

JBL Synthesis SCL-5 filters_auto_eq

AutomaticEQ

JBL Synthesis SCL-5 filters_eq_full

Target v.s. EQ

JBL Synthesis SCL-5
Graphic EQ 15 bands
Set preamp gain to: -1.1dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 0.25
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 -0.25
3 630.0 2.14 -0.5
3 1000.0 2.14 -0.75
3 1600.0 2.14 0.0
3 2500.0 2.14 -0.25
3 4000.0 2.14 0.25
3 6300.0 2.14 0.25
3 10000.0 2.14 0.75
3 16000.0 2.14 1.0
Download

These EQ is designed for a 15 bands graphical EQ.

JBL Synthesis SCL-5
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.25
3 31.0 4.32 0.25
3 40.0 4.32 0.25
3 50.0 4.32 0.25
3 63.0 4.32 0.25
3 80.0 4.32 0.25
3 100.0 4.32 0.25
3 125.0 4.32 0.0
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 -0.25
3 400.0 4.32 -0.25
3 500.0 4.32 -0.25
3 630.0 4.32 -0.5
3 800.0 4.32 -0.75
3 1000.0 4.32 -0.75
3 1250.0 4.32 -0.25
3 1600.0 4.32 0.0
3 2000.0 4.32 -0.25
3 2500.0 4.32 -0.25
3 3150.0 4.32 -0.25
3 4000.0 4.32 0.0
3 5000.0 4.32 0.25
3 6300.0 4.32 0.0
3 8000.0 4.32 0.25
3 10000.0 4.32 0.5
3 12000.0 4.32 0.5
3 16000.0 4.32 0.75
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

JBL Synthesis SCL-5: comparison between EQs
JBL Synthesis SCL-5

Comparison betweens various EQs

JBL Synthesis SCL-5

Improvements made by EQ
