- Quality of the measurement data is low.
- Origin of the data is Misc.
- Format of the data is a scanned image .
-
Sensitivity:
- Measured: 86.6 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 60.5Hz (resp. 50.9Hz).
- Reference level is normalised to 0.6dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 1.1dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 4.61
and would be 6.42 with a
perfect subwoofer.
- Details: NBD: ON 0.464, LW 0.297, SP 0.302, PIR 0.259; SM: SP0.182, PIR0.292; LFQ 1.104, LFX 38Hz
- Tonality (Preference) Score is 6.43
with an EQ and would be 7.83 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.357, LW 0.249, SP 0.26, PIR 0.171; SM: SP0.388, PIR0.671; LFQ 1.209, LFX 30Hz
- Tonality (Preference) Score is 4.61
and would be 6.42 with a
perfect subwoofer.
- Link to Original review.

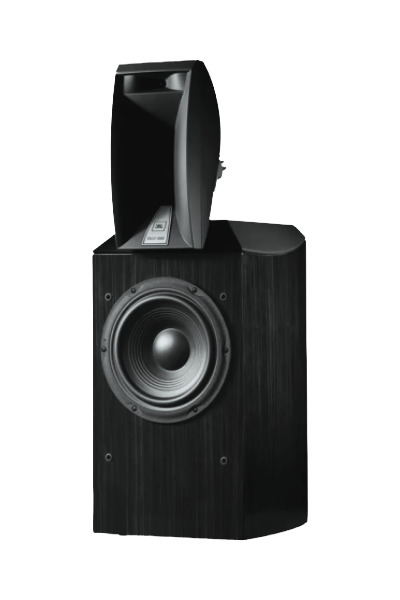

JBL Synthesis Array 800 is a passive cinema that cost around 3000 USD each.
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -2.8dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 33.0 | 0.34 | 3.0 |
| PK | 102.0 | 1.46 | -3.31 |
| PK | 382.0 | 2.93 | -1.25 |
| PK | 1161.0 | 1.44 | -0.92 |
| PK | 5165.0 | 2.89 | -1.19 |
| PK | 8694.0 | 2.32 | 1.4 |
| PK | 14633.0 | 0.55 | -4.33 |
| Download | |||
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| Graphic EQ 15 bands | |||
| Set preamp gain to: -0.3dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 25.0 | 2.14 | 0.25 |
| PK | 40.0 | 2.14 | 0.25 |
| PK | 63.0 | 2.14 | 0.25 |
| PK | 100.0 | 2.14 | -0.5 |
| PK | 160.0 | 2.14 | -0.25 |
| PK | 250.0 | 2.14 | 0.0 |
| PK | 400.0 | 2.14 | -0.25 |
| PK | 630.0 | 2.14 | 0.0 |
| PK | 1000.0 | 2.14 | 0.0 |
| PK | 1600.0 | 2.14 | 0.25 |
| PK | 2500.0 | 2.14 | 0.25 |
| PK | 4000.0 | 2.14 | 0.25 |
| PK | 6300.0 | 2.14 | 0.0 |
| PK | 10000.0 | 2.14 | -0.25 |
| PK | 16000.0 | 2.14 | -0.75 |
| Download | |||
This EQ is designed for a 15 bands graphical EQ.
| Graphic EQ 31 bands | |||
| Set preamp gain to: -0.4dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 20.0 | 4.32 | 0.0 |
| PK | 25.0 | 4.32 | 0.25 |
| PK | 31.0 | 4.32 | 0.25 |
| PK | 40.0 | 4.32 | 0.25 |
| PK | 50.0 | 4.32 | 0.25 |
| PK | 63.0 | 4.32 | 0.25 |
| PK | 80.0 | 4.32 | -0.25 |
| PK | 100.0 | 4.32 | -0.25 |
| PK | 125.0 | 4.32 | -0.25 |
| PK | 160.0 | 4.32 | -0.25 |
| PK | 200.0 | 4.32 | 0.0 |
| PK | 250.0 | 4.32 | 0.0 |
| PK | 315.0 | 4.32 | 0.0 |
| PK | 400.0 | 4.32 | 0.0 |
| PK | 500.0 | 4.32 | 0.0 |
| PK | 630.0 | 4.32 | 0.0 |
| PK | 800.0 | 4.32 | 0.25 |
| PK | 1000.0 | 4.32 | 0.0 |
| PK | 1250.0 | 4.32 | 0.25 |
| PK | 1600.0 | 4.32 | 0.25 |
| PK | 2000.0 | 4.32 | 0.25 |
| PK | 2500.0 | 4.32 | 0.25 |
| PK | 3150.0 | 4.32 | 0.25 |
| PK | 4000.0 | 4.32 | 0.25 |
| PK | 5000.0 | 4.32 | 0.0 |
| PK | 6300.0 | 4.32 | 0.0 |
| PK | 8000.0 | 4.32 | 0.25 |
| PK | 10000.0 | 4.32 | 0.0 |
| PK | 12000.0 | 4.32 | -0.25 |
| PK | 16000.0 | 4.32 | -0.5 |
| PK | 20000.0 | 4.32 | 0.0 |
| Download | |||
This EQ is designed for a 31 bands graphical EQ.
