- Quality of the measurement data is low.
- Origin of the data is Misc.
- Format of the data is a scanned image .
-
Sensitivity:
- Measured: 88.4 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 49.1Hz (resp. 34.5Hz).
- Reference level is normalised to 1.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 1.5dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 4.96
and would be 6.23 with a
perfect subwoofer.
- Details: NBD: ON 0.672, LW 0.431, SP 0.418, PIR 0.388; SM: SP0.696, PIR0.599; LFQ 1.293, LFX 28Hz
- Tonality (Preference) Score is 6.64
with an EQ and would be 7.65 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.563, LW 0.317, SP 0.27, PIR 0.232; SM: SP0.889, PIR0.892; LFQ 1.293, LFX 24Hz
- Tonality (Preference) Score is 4.96
and would be 6.23 with a
perfect subwoofer.
- Link to original Review: audioheritage review. Links to other reviews: stereophile review .

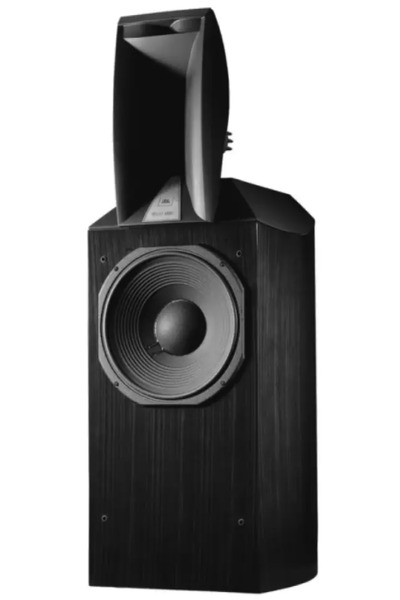

JBL Synthesis Array 1400 is a passive cinema that cost around 5750 USD each.
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -2.8dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| LS | 52.0 | 1.26 | 2.91 |
| PK | 102.0 | 1.29 | -1.19 |
| PK | 194.0 | 1.59 | 1.82 |
| PK | 229.0 | 2.69 | -2.2 |
| PK | 478.0 | 2.9 | -1.19 |
| PK | 1491.0 | 2.97 | 1.89 |
| PK | 7173.0 | 2.86 | -1.83 |
| PK | 9372.0 | 3.0 | -2.55 |
| PK | 15474.0 | 1.28 | -1.01 |
| Download | |||
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| Graphic EQ 15 bands | |||
| Set preamp gain to: -0.6dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 25.0 | 2.14 | 0.5 |
| PK | 40.0 | 2.14 | 0.5 |
| PK | 63.0 | 2.14 | 0.0 |
| PK | 100.0 | 2.14 | -0.25 |
| PK | 160.0 | 2.14 | 0.0 |
| PK | 250.0 | 2.14 | 0.0 |
| PK | 400.0 | 2.14 | 0.0 |
| PK | 630.0 | 2.14 | 0.25 |
| PK | 1000.0 | 2.14 | 0.25 |
| PK | 1600.0 | 2.14 | 0.5 |
| PK | 2500.0 | 2.14 | 0.25 |
| PK | 4000.0 | 2.14 | 0.25 |
| PK | 6300.0 | 2.14 | -0.25 |
| PK | 10000.0 | 2.14 | -0.5 |
| PK | 16000.0 | 2.14 | -0.5 |
| Download | |||
This EQ is designed for a 15 bands graphical EQ.
| Graphic EQ 31 bands | |||
| Set preamp gain to: -0.4dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 20.0 | 4.32 | 0.0 |
| PK | 25.0 | 4.32 | 0.25 |
| PK | 31.0 | 4.32 | 0.25 |
| PK | 40.0 | 4.32 | 0.25 |
| PK | 50.0 | 4.32 | 0.25 |
| PK | 63.0 | 4.32 | 0.0 |
| PK | 80.0 | 4.32 | 0.0 |
| PK | 100.0 | 4.32 | -0.25 |
| PK | 125.0 | 4.32 | 0.0 |
| PK | 160.0 | 4.32 | 0.0 |
| PK | 200.0 | 4.32 | 0.0 |
| PK | 250.0 | 4.32 | 0.0 |
| PK | 315.0 | 4.32 | 0.0 |
| PK | 400.0 | 4.32 | 0.0 |
| PK | 500.0 | 4.32 | 0.0 |
| PK | 630.0 | 4.32 | 0.25 |
| PK | 800.0 | 4.32 | 0.25 |
| PK | 1000.0 | 4.32 | 0.25 |
| PK | 1250.0 | 4.32 | 0.25 |
| PK | 1600.0 | 4.32 | 0.25 |
| PK | 2000.0 | 4.32 | 0.0 |
| PK | 2500.0 | 4.32 | 0.25 |
| PK | 3150.0 | 4.32 | 0.0 |
| PK | 4000.0 | 4.32 | 0.0 |
| PK | 5000.0 | 4.32 | 0.25 |
| PK | 6300.0 | 4.32 | -0.25 |
| PK | 8000.0 | 4.32 | -0.25 |
| PK | 10000.0 | 4.32 | -0.25 |
| PK | 12000.0 | 4.32 | 0.0 |
| PK | 16000.0 | 4.32 | -0.25 |
| PK | 20000.0 | 4.32 | 0.0 |
| Download | |||
