What we know about the measurement:

JBL Studio 698 is a passive floorstanders that cost around 1700 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 89.5dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 54.2Hz (resp. 47.6Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.0dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.03 and would be 5.98 with a perfect subwoofer.
      • Details: NBD: ON 0.543, LW 0.543, SP 0.549, PIR 0.516; SM: SP0.762, PIR0.514; LFQ 1.504, LFX 41Hz
    • Tonality (Preference) Score is 6.31 with an EQ and would be 7.49 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.456, LW 0.422, SP 0.402, PIR 0.365; SM: SP0.928, PIR0.877; LFQ 1.498, LFX 27Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 90 dB
    • Impedance 6 Ohm
    • Size
      • Width 300mm
      • Height 1058mm
      • Depth 400 mm)
    • Weight 35.8 kg

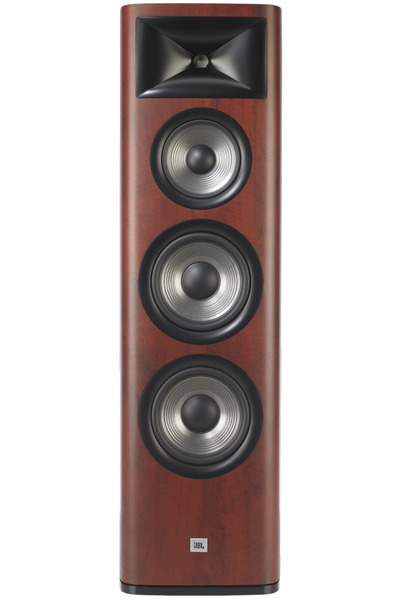

JBL Studio 698
AutomaticEQ (IIR)
Set preamp gain to: -3.1dB.
Type Freq Q Gain
3 27.0 2.3 2.99
3 178.0 0.8 2.01
3 279.0 2.66 -2.25
3 1954.0 2.98 0.77
3 3177.0 2.93 -3.12
3 4495.0 2.94 -1.63
3 7308.0 1.65 -1.99
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

JBL Studio 698 filters_auto_eq

AutomaticEQ

JBL Studio 698 filters_eq_full

Target v.s. EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
