What we know about the measurement:

JBL Studio 630 is a passive bookshelves that cost around 700 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 82.8dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 54.2Hz (resp. 45.4Hz).
  • Reference level is normalised to 0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.6dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.61 and would be 5.62 with a perfect subwoofer.
      • Details: NBD: ON 0.585, LW 0.554, SP 0.552, PIR 0.546; SM: SP0.779, PIR0.445; LFQ 0.666, LFX 42Hz
    • Tonality (Preference) Score is 6.29 with an EQ and would be 7.86 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.395, LW 0.371, SP 0.365, PIR 0.324; SM: SP0.963, PIR0.922; LFQ 0.794, LFX 33Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 85 dB
    • Impedance 6 Ohm
    • Size
      • Width 230mm
      • Height 372mm
      • Depth 280 mm)
    • Weight 9.02 kg

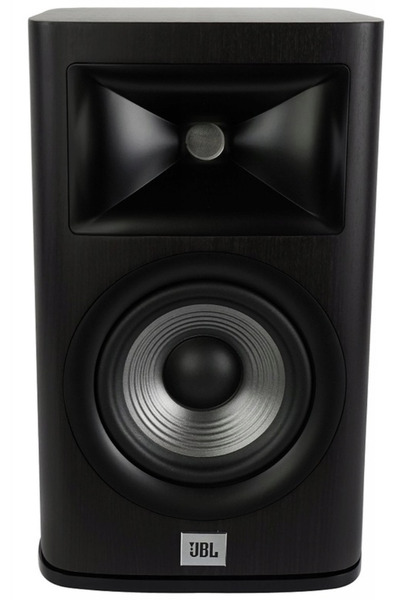

JBL Studio 630
AutomaticEQ (IIR)
Set preamp gain to: -3.4dB.
Type Freq Q Gain
3 34.0 0.8 2.99
3 92.0 1.37 -3.19
3 369.0 0.57 1.62
3 579.0 2.86 2.68
3 1480.0 1.16 -3.87
3 2023.0 2.97 2.97
3 6361.0 0.48 -2.08
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

JBL Studio 630 filters_auto_eq

AutomaticEQ

JBL Studio 630 filters_eq_full

Target v.s. EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
