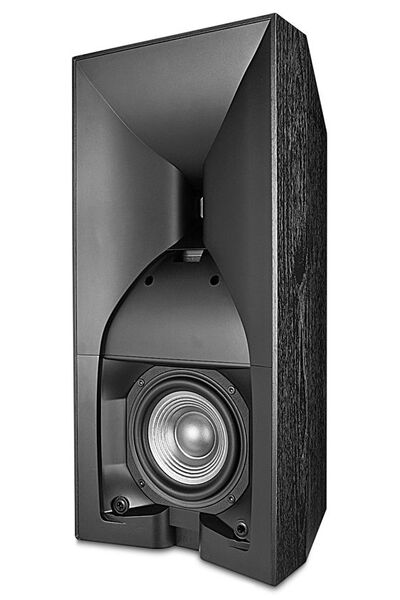

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 83.9dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
-
-3dB (resp. -6db) point v.s. reference is at 73.2Hz (resp. 46.9Hz).
-
Reference level is normalised to -0.0dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.8dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-60.0°, 60.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-30.0°, 20.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.27
and would be 7.34 with a
perfect subwoofer.
- Details:
NBD: ON 0.454,
LW 0.395, SP
0.388, PIR
0.364; SM:
SP0.934,
PIR0.812; LFQ
0.485, LFX 43Hz
- Tonality (Preference) Score is 6.12
with an EQ and would be 8.07 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.389,
LW 0.322, SP
0.31, PIR
0.27; SM:
SP0.972,
PIR0.933; LFQ 0.485, LFX 41Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -3.0dB.
|
| Type |
Freq |
Q |
Gain |
| 5 |
99.0 |
0.9 |
2.96 |
| 3 |
309.0 |
1.76 |
1.76 |
| 3 |
604.0 |
1.68 |
0.17 |
| 3 |
1103.0 |
2.79 |
0.96 |
| 3 |
1822.0 |
2.8 |
1.42 |
| 3 |
2226.0 |
2.83 |
-1.67 |
| 3 |
6489.0 |
1.2 |
0.27 |
| 3 |
8478.0 |
2.95 |
-1.58 |
| 3 |
15474.0 |
0.89 |
1.17 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -2.3dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
344.0 |
13.0 |
1.1 |
| 3 |
381.0 |
10.0 |
-1.2 |
| 3 |
458.0 |
8.0 |
-1.2 |
| 3 |
563.0 |
4.5 |
-0.9 |
| 3 |
682.0 |
6.0 |
-1.2 |
| 3 |
912.0 |
3.5 |
-1.7 |
| 3 |
1155.0 |
15.0 |
0.7 |
| 3 |
1350.0 |
8.0 |
-2.1 |
| 3 |
1470.0 |
5.0 |
-2.2 |
| 3 |
1810.0 |
15.0 |
-0.5 |
| 3 |
2095.0 |
11.0 |
-2.1 |
| 3 |
2365.0 |
11.0 |
-1.8 |
| 3 |
3480.0 |
3.5 |
-1.6 |
| 3 |
5450.0 |
1.4 |
-2.1 |
| 3 |
7350.0 |
5.0 |
1.1 |
| 3 |
8620.0 |
3.3 |
-3.0 |
| 3 |
10090.0 |
11.0 |
2.1 |
| 3 |
11680.0 |
3.5 |
-1.3 |
| 3 |
15300.0 |
6.0 |
2.7 |
| 3 |
16040.0 |
15.0 |
-1.8 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.8dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.25 |
| 3 |
40.0 |
2.14 |
0.25 |
| 3 |
63.0 |
2.14 |
0.25 |
| 3 |
100.0 |
2.14 |
0.25 |
| 3 |
160.0 |
2.14 |
0.0 |
| 3 |
250.0 |
2.14 |
0.25 |
| 3 |
400.0 |
2.14 |
0.25 |
| 3 |
630.0 |
2.14 |
0.25 |
| 3 |
1000.0 |
2.14 |
0.25 |
| 3 |
1600.0 |
2.14 |
0.25 |
| 3 |
2500.0 |
2.14 |
0.0 |
| 3 |
4000.0 |
2.14 |
0.25 |
| 3 |
6300.0 |
2.14 |
0.25 |
| 3 |
10000.0 |
2.14 |
0.25 |
| 3 |
16000.0 |
2.14 |
0.75 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.5dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.25 |
| 3 |
31.0 |
4.32 |
0.25 |
| 3 |
40.0 |
4.32 |
0.25 |
| 3 |
50.0 |
4.32 |
0.25 |
| 3 |
63.0 |
4.32 |
0.25 |
| 3 |
80.0 |
4.32 |
0.25 |
| 3 |
100.0 |
4.32 |
0.0 |
| 3 |
125.0 |
4.32 |
0.0 |
| 3 |
160.0 |
4.32 |
0.0 |
| 3 |
200.0 |
4.32 |
0.0 |
| 3 |
250.0 |
4.32 |
0.25 |
| 3 |
315.0 |
4.32 |
0.25 |
| 3 |
400.0 |
4.32 |
0.0 |
| 3 |
500.0 |
4.32 |
0.25 |
| 3 |
630.0 |
4.32 |
0.0 |
| 3 |
800.0 |
4.32 |
0.0 |
| 3 |
1000.0 |
4.32 |
0.0 |
| 3 |
1250.0 |
4.32 |
0.25 |
| 3 |
1600.0 |
4.32 |
0.25 |
| 3 |
2000.0 |
4.32 |
0.0 |
| 3 |
2500.0 |
4.32 |
0.0 |
| 3 |
3150.0 |
4.32 |
0.0 |
| 3 |
4000.0 |
4.32 |
0.25 |
| 3 |
5000.0 |
4.32 |
0.0 |
| 3 |
6300.0 |
4.32 |
0.25 |
| 3 |
8000.0 |
4.32 |
0.0 |
| 3 |
10000.0 |
4.32 |
0.25 |
| 3 |
12000.0 |
4.32 |
0.25 |
| 3 |
16000.0 |
4.32 |
0.5 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
