- Quality of the measurement data is low.
- Origin of the data is JBL.
- Format of the data is a GLL file .
-
Sensitivity:
- Company: 85 dB
- Measured: 77.6 dB (avg. 300Hz-3kHz for 2.83V estimated at 1m).
- Measured: 57.6 dB computed at the measurement distance (10.0m) over the same frequency range.
- -3dB (resp. -6db) point v.s. reference is at 92.5Hz (resp. 80.0Hz).
- Reference level is normalised to 0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 2.4dB over the same frequency range.
- Tonality (Preference) Score
- Note: The tonality (Preference) score does not make sense for surround speakers. Don't give too much credits to the value.
- Tonality (Preference) Score is 3.22
and would be 6.47 with a
perfect subwoofer.
- Details: NBD: ON 0.503, LW 0.486, SP 0.588, PIR 0.517; SM: SP0.78, PIR0.685; LFQ 0.931, LFX 82Hz
- Tonality (Preference) Score is 5.37
with an EQ and would be 8.39 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.255, LW 0.239, SP 0.295, PIR 0.24; SM: SP0.909, PIR0.891; LFQ 0.931, LFX 73Hz
- Note: This is a speaker designed to be mounted on a wall..

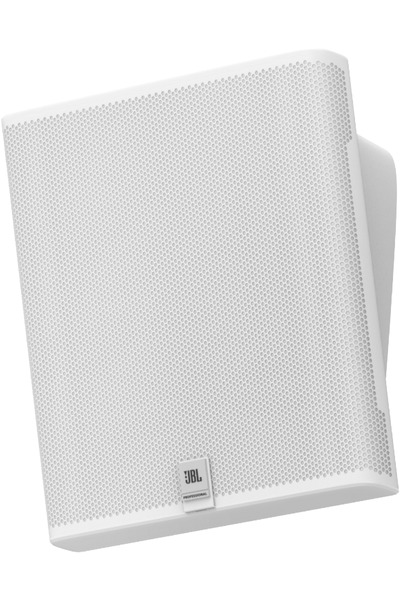

JBL SLP14 is a passive surround that cost around 280 USD each.
Vendor specifications
- Dispersion: 140° horizontal and 120° vertical.
- Impedance 8 Ohm
- SPL
- continuous: 102 dB
- peak: 108 dB
- Size
- Width 263mm
- Height 286mm
- Depth 100mm
- Weight 2.8kg
Directivity (-6dB)
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -3.1dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| LS | 92.0 | 1.05 | 2.9 |
| PK | 92.0 | 2.5 | 2.89 |
| PK | 129.0 | 1.9 | -2.72 |
| PK | 153.0 | 2.57 | -2.96 |
| PK | 200.0 | 2.4 | -2.2 |
| PK | 714.0 | 2.98 | 1.13 |
| PK | 2082.0 | 2.83 | 1.53 |
| PK | 4645.0 | 2.89 | -1.58 |
| PK | 12662.0 | 1.27 | 1.19 |
| Download | |||
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| Graphic EQ 15 bands | |||
| Set preamp gain to: -1.0dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 25.0 | 2.14 | 0.75 |
| PK | 40.0 | 2.14 | 0.75 |
| PK | 63.0 | 2.14 | 0.75 |
| PK | 100.0 | 2.14 | 0.25 |
| PK | 160.0 | 2.14 | -1.25 |
| PK | 250.0 | 2.14 | -0.5 |
| PK | 400.0 | 2.14 | 0.0 |
| PK | 630.0 | 2.14 | 0.25 |
| PK | 1000.0 | 2.14 | 0.0 |
| PK | 1600.0 | 2.14 | -0.25 |
| PK | 2500.0 | 2.14 | -0.25 |
| PK | 4000.0 | 2.14 | -0.5 |
| PK | 6300.0 | 2.14 | -0.25 |
| PK | 10000.0 | 2.14 | -0.25 |
| PK | 16000.0 | 2.14 | 0.0 |
| Download | |||
This EQ is designed for a 15 bands graphical EQ.
| Graphic EQ 31 bands | |||
| Set preamp gain to: -0.8dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 20.0 | 4.32 | 0.0 |
| PK | 25.0 | 4.32 | 0.5 |
| PK | 31.0 | 4.32 | 0.5 |
| PK | 40.0 | 4.32 | 0.5 |
| PK | 50.0 | 4.32 | 0.5 |
| PK | 63.0 | 4.32 | 0.5 |
| PK | 80.0 | 4.32 | 0.5 |
| PK | 100.0 | 4.32 | 0.25 |
| PK | 125.0 | 4.32 | -0.5 |
| PK | 160.0 | 4.32 | -0.75 |
| PK | 200.0 | 4.32 | -0.5 |
| PK | 250.0 | 4.32 | -0.25 |
| PK | 315.0 | 4.32 | 0.0 |
| PK | 400.0 | 4.32 | 0.0 |
| PK | 500.0 | 4.32 | 0.0 |
| PK | 630.0 | 4.32 | 0.25 |
| PK | 800.0 | 4.32 | 0.0 |
| PK | 1000.0 | 4.32 | 0.0 |
| PK | 1250.0 | 4.32 | 0.0 |
| PK | 1600.0 | 4.32 | 0.0 |
| PK | 2000.0 | 4.32 | 0.25 |
| PK | 2500.0 | 4.32 | 0.0 |
| PK | 3150.0 | 4.32 | -0.25 |
| PK | 4000.0 | 4.32 | -0.25 |
| PK | 5000.0 | 4.32 | -0.25 |
| PK | 6300.0 | 4.32 | 0.0 |
| PK | 8000.0 | 4.32 | 0.0 |
| PK | 10000.0 | 4.32 | 0.0 |
| PK | 12000.0 | 4.32 | 0.25 |
| PK | 16000.0 | 4.32 | 0.25 |
| PK | 20000.0 | 4.32 | 0.0 |
| Download | |||
