What we know about the measurement:

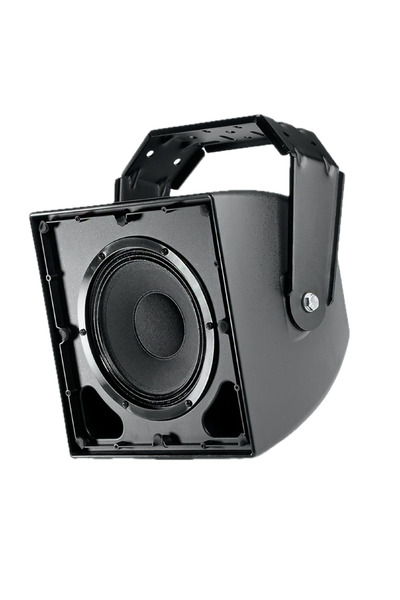

JBL SCS 8 is a passive surround speaker that cost around 600USD each .

  • Quality of the measurement data is high .
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 90.2dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
  • -3dB (resp. -6db) point v.s. reference is at 87.9Hz (resp. 77.6Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 6.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is -1.87 and would be 1.27 with a perfect subwoofer.
      • Details: NBD: ON 1.811, LW 1.008, SP 1.001, PIR 0.909; SM: SP0.633, PIR0.352; LFQ 1.389, LFX 77Hz
    • Tonality (Preference) Score is 0.87 with an EQ and would be 3.75 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 1.368, LW 0.697, SP 0.914, PIR 0.733; SM: SP0.832, PIR0.719; LFQ 1.171, LFX 67Hz
  • Link to original Review: eac review. .
  • Vendor specifications:
    • Dispersion: 120° horizontal and 120° vertical.
    • Sensitivity 94 dB
    • Impedance 8 Ohm
    • SPL
      • max: 118 dB
    • Size
      • Width 300mm
      • Height 300mm
      • Depth 305 mm)
    • Weight 11.4 kg
