What we know about the measurement:

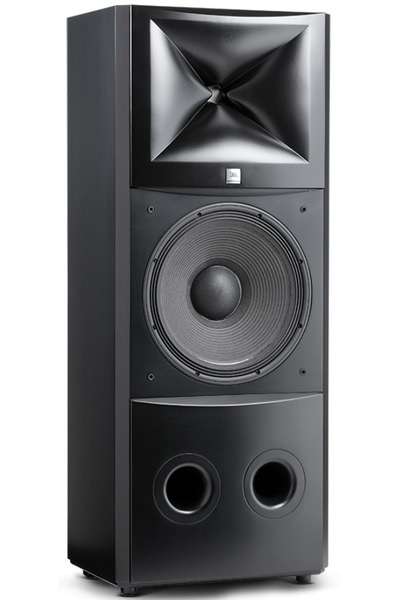

JBL M2 is an active floorstanders that cost around 12000 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 33.7Hz (resp. 24.2Hz).
  • Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.1dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-40.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.86 and would be 5.69 with a perfect subwoofer.
      • Details: NBD: ON 0.625, LW 0.521, SP 0.373, PIR 0.417; SM: SP0.739, PIR0.353; LFQ 2.079, LFX 22Hz
    • Tonality (Preference) Score is 6.5 with an EQ and would be 7.28 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.521, LW 0.432, SP 0.338, PIR 0.357; SM: SP0.92, PIR0.847; LFQ 2.079, LFX 21Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Dispersion: 120° horizontal and 100° vertical.
    • Sensitivity 92 dB
    • SPL
      • max: 117 dB
      • peak: 123 dB
    • Size
      • Width 508mm
      • Height 1256mm
      • Depth 355 mm)
    • Weight 58.5 kg
JBL M2
AutomaticEQ (IIR)
Set preamp gain to: -2.8dB.
Type Freq Q Gain
3 33.0 0.66 2.09
3 200.0 0.72 1.2
3 378.0 2.27 -1.28
3 478.0 2.9 2.91
3 844.0 2.6 0.43
3 1594.0 1.66 0.32
3 3008.0 0.66 0.06
3 6489.0 2.77 2.03
3 9064.0 0.62 -2.78
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

JBL M2 filters_auto_eq

AutomaticEQ

JBL M2 filters_eq_full

Target v.s. EQ

JBL M2
Graphic EQ 15 bands
Set preamp gain to: -0.6dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.25
3 63.0 2.14 0.25
3 100.0 2.14 0.0
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 -0.25
3 1000.0 2.14 -0.25
3 1600.0 2.14 -0.25
3 2500.0 2.14 -0.25
3 4000.0 2.14 -0.25
3 6300.0 2.14 -0.25
3 10000.0 2.14 -0.5
3 16000.0 2.14 0.0
Download

These EQ is designed for a 15 bands graphical EQ.

JBL M2
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.25
3 50.0 4.32 0.25
3 63.0 4.32 0.25
3 80.0 4.32 0.25
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 0.25
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.25
3 630.0 4.32 0.0
3 800.0 4.32 0.25
3 1000.0 4.32 0.0
3 1250.0 4.32 0.0
3 1600.0 4.32 0.0
3 2000.0 4.32 -0.25
3 2500.0 4.32 -0.25
3 3150.0 4.32 -0.25
3 4000.0 4.32 -0.25
3 5000.0 4.32 -0.25
3 6300.0 4.32 -0.25
3 8000.0 4.32 -0.5
3 10000.0 4.32 -0.25
3 12000.0 4.32 -0.5
3 16000.0 4.32 0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

JBL M2: comparison between EQs
JBL M2

Comparison betweens various EQs

JBL M2

Improvements made by EQ
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
