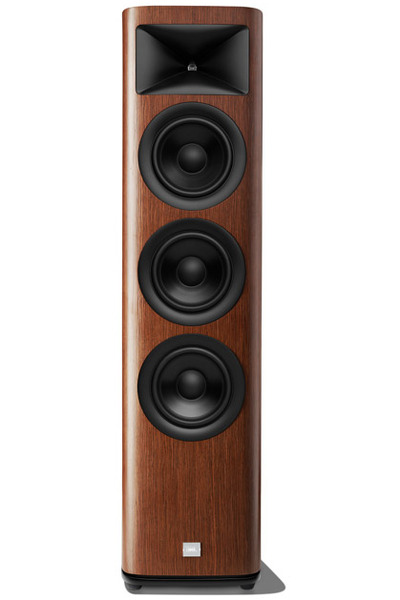

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 89.5dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
-
-3dB (resp. -6db) point v.s. reference is at 67.4Hz (resp. 52.7Hz).
-
Reference level is normalised to -0.1dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.1dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-60.0°, 50.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-30.0°, 20.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 4.76
and would be 7.07 with a
perfect subwoofer.
- Details:
NBD: ON 0.478,
LW 0.457, SP
0.461, PIR
0.432; SM:
SP0.896,
PIR0.807; LFQ
0.903, LFX 49Hz
- Tonality (Preference) Score is 6.01
with an EQ and would be 8.09 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.389,
LW 0.344, SP
0.287, PIR
0.266; SM:
SP0.955,
PIR0.936; LFQ 0.763, LFX 43Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -2.9dB.
|
| Type |
Freq |
Q |
Gain |
| 5 |
89.0 |
0.4 |
2.93 |
| 3 |
245.0 |
1.58 |
0.75 |
| 3 |
511.0 |
2.4 |
1.54 |
| 3 |
1261.0 |
2.38 |
-0.98 |
| 3 |
1948.0 |
2.76 |
2.71 |
| 3 |
4492.0 |
1.89 |
-0.28 |
| 3 |
5870.0 |
1.93 |
1.81 |
| 3 |
10361.0 |
2.86 |
2.81 |
| 3 |
13092.0 |
1.24 |
-1.3 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -1.2dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
348.0 |
16.0 |
-1.2 |
| 3 |
573.0 |
5.0 |
1.2 |
| 3 |
670.0 |
5.0 |
-2.0 |
| 3 |
817.0 |
10.0 |
0.6 |
| 3 |
994.0 |
4.395 |
-1.2 |
| 3 |
1271.0 |
5.0 |
-1.5 |
| 3 |
1410.0 |
13.0 |
0.5 |
| 3 |
1560.0 |
13.0 |
-1.0 |
| 3 |
2000.0 |
5.0 |
1.7 |
| 3 |
2220.0 |
28.0 |
0.9 |
| 3 |
2380.0 |
21.0 |
-0.7 |
| 3 |
3670.0 |
1.0 |
-1.0 |
| 3 |
5700.0 |
14.0 |
0.6 |
| 3 |
6911.0 |
4.977 |
-0.7 |
| 3 |
8517.0 |
5.0 |
-2.3 |
| 3 |
10118.0 |
5.0 |
2.7 |
| 3 |
13347.0 |
1.826 |
-3.3 |
| 3 |
15500.0 |
8.0 |
-0.6 |
| 3 |
17870.0 |
8.0 |
-2.5 |
| 3 |
18637.0 |
5.0 |
-9.8 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.5 |
| 3 |
100.0 |
2.14 |
0.25 |
| 3 |
160.0 |
2.14 |
0.0 |
| 3 |
250.0 |
2.14 |
0.0 |
| 3 |
400.0 |
2.14 |
0.0 |
| 3 |
630.0 |
2.14 |
0.0 |
| 3 |
1000.0 |
2.14 |
0.0 |
| 3 |
1600.0 |
2.14 |
0.25 |
| 3 |
2500.0 |
2.14 |
0.25 |
| 3 |
4000.0 |
2.14 |
0.0 |
| 3 |
6300.0 |
2.14 |
0.25 |
| 3 |
10000.0 |
2.14 |
0.25 |
| 3 |
16000.0 |
2.14 |
-0.25 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.8dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.5 |
| 3 |
31.0 |
4.32 |
0.5 |
| 3 |
40.0 |
4.32 |
0.5 |
| 3 |
50.0 |
4.32 |
0.5 |
| 3 |
63.0 |
4.32 |
0.5 |
| 3 |
80.0 |
4.32 |
0.25 |
| 3 |
100.0 |
4.32 |
0.25 |
| 3 |
125.0 |
4.32 |
0.0 |
| 3 |
160.0 |
4.32 |
0.0 |
| 3 |
200.0 |
4.32 |
0.0 |
| 3 |
250.0 |
4.32 |
0.25 |
| 3 |
315.0 |
4.32 |
0.0 |
| 3 |
400.0 |
4.32 |
0.25 |
| 3 |
500.0 |
4.32 |
0.25 |
| 3 |
630.0 |
4.32 |
0.0 |
| 3 |
800.0 |
4.32 |
0.25 |
| 3 |
1000.0 |
4.32 |
0.0 |
| 3 |
1250.0 |
4.32 |
-0.25 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
0.25 |
| 3 |
2500.0 |
4.32 |
0.0 |
| 3 |
3150.0 |
4.32 |
0.25 |
| 3 |
4000.0 |
4.32 |
0.0 |
| 3 |
5000.0 |
4.32 |
0.25 |
| 3 |
6300.0 |
4.32 |
0.25 |
| 3 |
8000.0 |
4.32 |
0.0 |
| 3 |
10000.0 |
4.32 |
0.75 |
| 3 |
12000.0 |
4.32 |
0.0 |
| 3 |
16000.0 |
4.32 |
0.25 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
