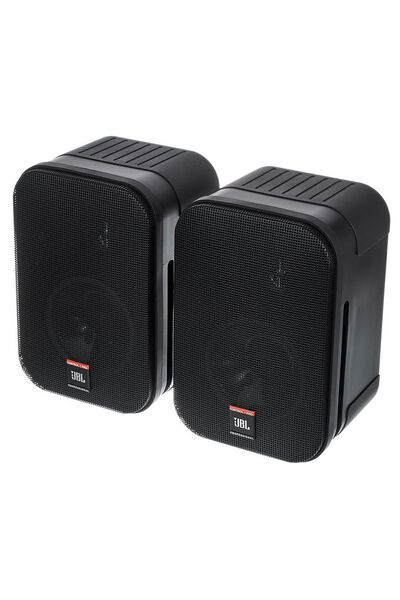

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 86.3dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
-
-3dB (resp. -6db) point v.s. reference is at 117.2Hz (resp. 93.8Hz).
-
Reference level is normalised to 0.1dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.2dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-50.0°, 60.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-20.0°, 20.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 2.79
and would be 6.28 with a
perfect subwoofer.
- Details:
NBD: ON 0.477,
LW 0.452, SP
0.439, PIR
0.412; SM:
SP0.695,
PIR0.44; LFQ
0.65, LFX 93Hz
- Tonality (Preference) Score is 5.71
with an EQ and would be 8.23 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.324,
LW 0.289, SP
0.33, PIR
0.266; SM:
SP0.944,
PIR0.929; LFQ 0.577, LFX 55Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -4.3dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
62.0 |
0.59 |
2.99 |
| 3 |
172.0 |
1.06 |
-5.57 |
| 3 |
178.0 |
0.25 |
3.0 |
| 3 |
1083.0 |
0.41 |
-2.17 |
| 3 |
2023.0 |
2.99 |
2.72 |
| 3 |
2670.0 |
2.96 |
1.26 |
| 3 |
15150.0 |
0.67 |
-5.06 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -2.0dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
374.0 |
10.0 |
0.6 |
| 3 |
444.0 |
9.0 |
0.8 |
| 3 |
536.0 |
7.0 |
0.8 |
| 3 |
625.0 |
10.0 |
0.7 |
| 3 |
845.0 |
1.827 |
-1.5 |
| 3 |
1186.0 |
10.0 |
-0.4 |
| 3 |
1446.0 |
5.0 |
-2.1 |
| 3 |
1740.0 |
15.0 |
-0.6 |
| 3 |
2000.0 |
4.0 |
0.3 |
| 3 |
2162.0 |
1.6 |
2.3 |
| 3 |
2310.0 |
16.0 |
-0.5 |
| 3 |
2745.0 |
1.0 |
1.0 |
| 3 |
3710.0 |
9.0 |
-0.3 |
| 3 |
6220.0 |
1.052 |
4.5 |
| 3 |
6735.0 |
2.165 |
-1.1 |
| 3 |
9074.0 |
1.001 |
5.9 |
| 3 |
10520.0 |
5.0 |
6.2 |
| 3 |
10533.0 |
1.001 |
-26.6 |
| 3 |
11087.0 |
1.009 |
11.3 |
| 3 |
19000.0 |
3.0 |
-1.8 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.4dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.25 |
| 3 |
40.0 |
2.14 |
0.25 |
| 3 |
63.0 |
2.14 |
0.25 |
| 3 |
100.0 |
2.14 |
0.25 |
| 3 |
160.0 |
2.14 |
-0.25 |
| 3 |
250.0 |
2.14 |
-0.25 |
| 3 |
400.0 |
2.14 |
0.0 |
| 3 |
630.0 |
2.14 |
0.0 |
| 3 |
1000.0 |
2.14 |
-0.25 |
| 3 |
1600.0 |
2.14 |
0.0 |
| 3 |
2500.0 |
2.14 |
0.25 |
| 3 |
4000.0 |
2.14 |
0.0 |
| 3 |
6300.0 |
2.14 |
0.0 |
| 3 |
10000.0 |
2.14 |
-0.5 |
| 3 |
16000.0 |
2.14 |
-0.75 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.4dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.25 |
| 3 |
31.0 |
4.32 |
0.25 |
| 3 |
40.0 |
4.32 |
0.25 |
| 3 |
50.0 |
4.32 |
0.25 |
| 3 |
63.0 |
4.32 |
0.25 |
| 3 |
80.0 |
4.32 |
0.25 |
| 3 |
100.0 |
4.32 |
0.25 |
| 3 |
125.0 |
4.32 |
0.0 |
| 3 |
160.0 |
4.32 |
-0.25 |
| 3 |
200.0 |
4.32 |
-0.25 |
| 3 |
250.0 |
4.32 |
0.0 |
| 3 |
315.0 |
4.32 |
0.0 |
| 3 |
400.0 |
4.32 |
0.0 |
| 3 |
500.0 |
4.32 |
0.0 |
| 3 |
630.0 |
4.32 |
0.0 |
| 3 |
800.0 |
4.32 |
-0.25 |
| 3 |
1000.0 |
4.32 |
0.0 |
| 3 |
1250.0 |
4.32 |
-0.25 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
0.25 |
| 3 |
2500.0 |
4.32 |
0.25 |
| 3 |
3150.0 |
4.32 |
0.25 |
| 3 |
4000.0 |
4.32 |
0.0 |
| 3 |
5000.0 |
4.32 |
0.0 |
| 3 |
6300.0 |
4.32 |
0.0 |
| 3 |
8000.0 |
4.32 |
-0.25 |
| 3 |
10000.0 |
4.32 |
-0.5 |
| 3 |
12000.0 |
4.32 |
-0.5 |
| 3 |
16000.0 |
4.32 |
-0.5 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
