What we know about the measurement:

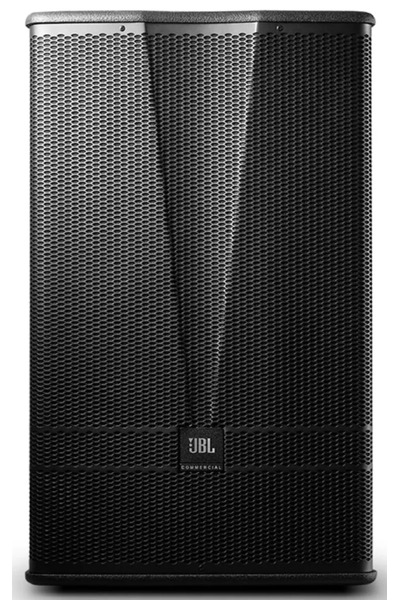

JBL CV3015 is a passive liveportable
- Quality of the measurement data is medium.
- Origin of the data is JBL.
- Format of the data is a GLL file .
-
Sensitivity:
- Sensitivity: 106.3dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
- Sensitivity: 86.3dB computed at the measurement distance (10.0m) over the same frequency range.
- -3dB (resp. -6db) point v.s. reference is at 82.5Hz (resp. 71.0Hz).
- Reference level is normalised to 0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 4.5dB over the same frequency range.
- Directivity
- Horizontal directivity is (-30.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
- Vertical directivity is (-40.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is -0.04
and would be 3.09 with a
perfect subwoofer.
- Details: NBD: ON 0.9, LW 0.808, SP 0.799, PIR 0.784; SM: SP0.322, PIR0.0; LFQ 3.301, LFX 77Hz
- Tonality (Preference) Score is 3.16
with an EQ and would be 5.68 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.771, LW 0.681, SP 0.689, PIR 0.655; SM: SP0.894, PIR0.813; LFQ 2.989, LFX 56Hz
- Tonality (Preference) Score is -0.04
and would be 3.09 with a
perfect subwoofer.
-
Vendor specifications:
- Dispersion: 90° horizontal and 90° vertical.
- Sensitivity 99 dB
- Impedance 8 Ohm
- SPL
- max: 125 dB
- peak: 131 dB
- Size
- Width 414mm
- Height 680mm
- Depth 445 mm)
- Weight 23.15 kg
