What we know about the measurement:

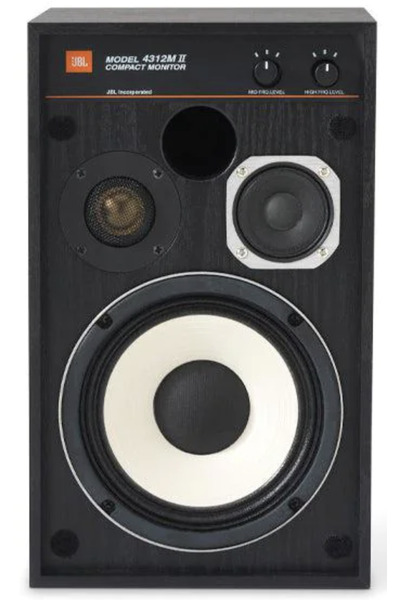

JBL 4312MII is a passive bookshelves that cost around 1000 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 90.9dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 117.2Hz (resp. 90.8Hz).
  • Reference level is normalised to -0.5dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 9.3dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-20.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 0.68 and would be 3.99 with a perfect subwoofer.
      • Details: NBD: ON 1.085, LW 0.943, SP 0.945, PIR 0.864; SM: SP0.804, PIR0.688; LFQ 0.777, LFX 84Hz
    • Tonality (Preference) Score is 4.07 with an EQ and would be 6.68 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.619, LW 0.505, SP 0.57, PIR 0.478; SM: SP0.898, PIR0.853; LFQ 0.664, LFX 58Hz
  • Link to Original review.
  • Vendor specifications:
    • Sensitivity 92 dB
    • Impedance 6 Ohm
    • Size
      • Width 180mm
      • Height 300mm
      • Depth 180 mm)
    • Weight 4.0 kg
JBL 4312MII
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
3 65.0 0.45 3.0
3 219.0 1.21 -1.59
3 739.0 1.49 -3.93
3 1586.0 0.77 2.71
3 2245.0 2.94 -1.29
3 4818.0 2.67 -7.4
3 8694.0 3.0 -8.99
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

JBL 4312MII filters_auto_eq

AutomaticEQ

JBL 4312MII filters_eq_full

Target v.s. EQ
