What we know about the measurement:

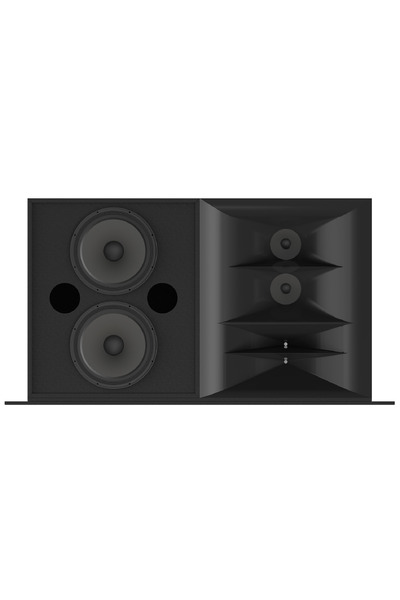

JBL 3733 is a passive cinema that cost around 10000 USD for a pair.

  • Quality of the measurement data is low.
  • Origin of the data is JBL.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 99.2dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 79.2dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 69.0Hz (resp. 69.0Hz).
  • Reference level is normalised to -0.5dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 5.9dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.82 and would be 6.74 with a perfect subwoofer.
      • Details: NBD: ON 0.604, LW 0.573, SP 0.551, PIR 0.516; SM: SP0.938, PIR0.909; LFQ 3.766, LFX 68Hz
    • Tonality (Preference) Score is 4.44 with an EQ and would be 7.36 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.449, LW 0.418, SP 0.489, PIR 0.402; SM: SP0.887, PIR0.861; LFQ 3.766, LFX 68Hz
  • Note: Data provided by JBL in GLL format is highly variable, beware. It ranges from excellent to surprising.
JBL 3733
AutomaticEQ (IIR)
Set preamp gain to: -3.0dB.
Type Freq Q Gain
PK 95.0 2.99 1.89
PK 243.0 0.53 -4.58
PK 504.0 0.75 2.97
PK 1121.0 3.0 -1.2
PK 2964.0 2.98 1.27
PK 8694.0 3.0 1.83
PK 16239.0 0.32 1.84
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

JBL 3733 filters_auto_eq

AutomaticEQ

JBL 3733 filters_eq_full

Target v.s. EQ

JBL 3733
Graphic EQ 15 bands
Set preamp gain to: -0.6dB.
Type Freq Q Gain
PK 25.0 2.14 0.25
PK 40.0 2.14 0.25
PK 63.0 2.14 0.25
PK 100.0 2.14 0.0
PK 160.0 2.14 -0.25
PK 250.0 2.14 -0.5
PK 400.0 2.14 0.0
PK 630.0 2.14 0.25
PK 1000.0 2.14 0.0
PK 1600.0 2.14 0.25
PK 2500.0 2.14 0.25
PK 4000.0 2.14 0.0
PK 6300.0 2.14 0.25
PK 10000.0 2.14 0.5
PK 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

JBL 3733
Graphic EQ 31 bands
Set preamp gain to: -0.6dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.25
PK 31.0 4.32 0.25
PK 40.0 4.32 0.25
PK 50.0 4.32 0.25
PK 63.0 4.32 0.25
PK 80.0 4.32 0.25
PK 100.0 4.32 0.0
PK 125.0 4.32 -0.25
PK 160.0 4.32 -0.25
PK 200.0 4.32 -0.5
PK 250.0 4.32 -0.5
PK 315.0 4.32 0.0
PK 400.0 4.32 0.0
PK 500.0 4.32 0.25
PK 630.0 4.32 0.25
PK 800.0 4.32 0.0
PK 1000.0 4.32 0.0
PK 1250.0 4.32 0.25
PK 1600.0 4.32 0.25
PK 2000.0 4.32 0.0
PK 2500.0 4.32 0.25
PK 3150.0 4.32 0.25
PK 4000.0 4.32 0.0
PK 5000.0 4.32 0.5
PK 6300.0 4.32 0.25
PK 8000.0 4.32 0.25
PK 10000.0 4.32 0.5
PK 12000.0 4.32 0.5
PK 16000.0 4.32 0.25
PK 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

JBL 3733: comparison between EQs
JBL 3733

Comparison betweens various EQs

JBL 3733

Improvements made by EQ
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
