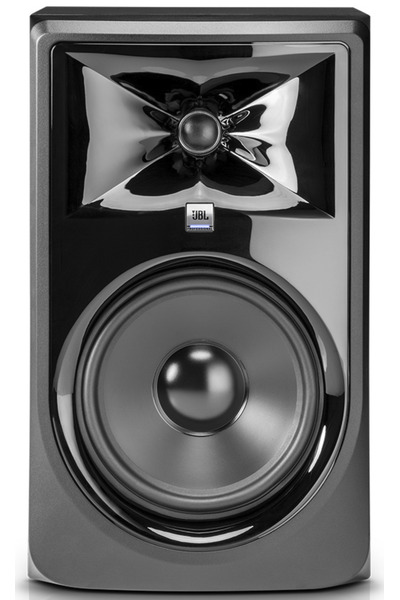

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
-3dB (resp. -6db) point v.s. reference is at 42.5Hz (resp. 39.6Hz).
-
Reference level is normalised to 0.0dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 1.8dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-60.0°, 60.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-30.0°, 20.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.56
and would be 7.37 with a
perfect subwoofer.
- Details:
NBD: ON 0.396,
LW 0.355, SP
0.331, PIR
0.314; SM:
SP0.843,
PIR0.696; LFQ
0.802, LFX 38Hz
- Tonality (Preference) Score is 6.36
with an EQ and would be 8.1 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.357,
LW 0.312, SP
0.292, PIR
0.268; SM:
SP0.943,
PIR0.91; LFQ 0.802, LFX 36Hz
- Link to Original review.
-
Vendor specifications:
- Dispersion: 120° horizontal and 90° vertical.
- Sensitivity 92 dB
- SPL
- Size
- Width 254mm
- Height 419mm
- Depth 308 mm)
- Weight 8.1 kg
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -2.8dB.
|
| Type |
Freq |
Q |
Gain |
| 5 |
47.0 |
0.5 |
2.38 |
| 3 |
89.0 |
2.75 |
1.79 |
| 3 |
181.0 |
2.88 |
0.98 |
| 3 |
547.0 |
0.44 |
1.53 |
| 3 |
1032.0 |
2.01 |
-1.6 |
| 3 |
1348.0 |
2.91 |
2.64 |
| 3 |
4492.0 |
2.58 |
-0.05 |
| 3 |
6276.0 |
2.15 |
-0.01 |
| 3 |
11077.0 |
0.64 |
-0.22 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -1.0dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
335.0 |
9.0 |
0.5 |
| 3 |
396.0 |
15.0 |
1.1 |
| 3 |
449.0 |
15.0 |
-0.7 |
| 3 |
592.0 |
10.0 |
1.4 |
| 3 |
637.0 |
25.0 |
-0.9 |
| 3 |
1366.0 |
5.0 |
3.0 |
| 3 |
1557.0 |
1.0 |
-2.3 |
| 3 |
1590.0 |
9.0 |
-0.7 |
| 3 |
1765.0 |
11.0 |
0.9 |
| 3 |
1930.0 |
16.0 |
-0.7 |
| 3 |
2120.0 |
15.0 |
0.6 |
| 3 |
2285.0 |
20.0 |
-0.7 |
| 3 |
2330.0 |
4.999 |
0.9 |
| 3 |
2630.0 |
15.0 |
-1.1 |
| 3 |
2840.0 |
14.0 |
1.1 |
| 3 |
3620.0 |
10.0 |
-0.8 |
| 3 |
6635.0 |
1.0 |
-1.2 |
| 3 |
9400.0 |
6.0 |
-1.2 |
| 3 |
13300.0 |
1.2 |
1.9 |
| 3 |
16000.0 |
1.8 |
-4.7 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.3dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.25 |
| 3 |
40.0 |
2.14 |
0.25 |
| 3 |
63.0 |
2.14 |
0.0 |
| 3 |
100.0 |
2.14 |
0.0 |
| 3 |
160.0 |
2.14 |
0.0 |
| 3 |
250.0 |
2.14 |
0.0 |
| 3 |
400.0 |
2.14 |
0.0 |
| 3 |
630.0 |
2.14 |
0.0 |
| 3 |
1000.0 |
2.14 |
-0.25 |
| 3 |
1600.0 |
2.14 |
0.0 |
| 3 |
2500.0 |
2.14 |
-0.25 |
| 3 |
4000.0 |
2.14 |
-0.5 |
| 3 |
6300.0 |
2.14 |
-0.5 |
| 3 |
10000.0 |
2.14 |
-0.5 |
| 3 |
16000.0 |
2.14 |
-0.75 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.4dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.25 |
| 3 |
31.0 |
4.32 |
0.25 |
| 3 |
40.0 |
4.32 |
0.25 |
| 3 |
50.0 |
4.32 |
0.0 |
| 3 |
63.0 |
4.32 |
0.0 |
| 3 |
80.0 |
4.32 |
0.25 |
| 3 |
100.0 |
4.32 |
0.25 |
| 3 |
125.0 |
4.32 |
0.0 |
| 3 |
160.0 |
4.32 |
0.0 |
| 3 |
200.0 |
4.32 |
0.0 |
| 3 |
250.0 |
4.32 |
0.0 |
| 3 |
315.0 |
4.32 |
0.0 |
| 3 |
400.0 |
4.32 |
0.0 |
| 3 |
500.0 |
4.32 |
0.0 |
| 3 |
630.0 |
4.32 |
0.0 |
| 3 |
800.0 |
4.32 |
0.0 |
| 3 |
1000.0 |
4.32 |
-0.25 |
| 3 |
1250.0 |
4.32 |
0.0 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
-0.25 |
| 3 |
2500.0 |
4.32 |
-0.25 |
| 3 |
3150.0 |
4.32 |
-0.25 |
| 3 |
4000.0 |
4.32 |
-0.5 |
| 3 |
5000.0 |
4.32 |
-0.5 |
| 3 |
6300.0 |
4.32 |
-0.5 |
| 3 |
8000.0 |
4.32 |
-0.5 |
| 3 |
10000.0 |
4.32 |
-0.5 |
| 3 |
12000.0 |
4.32 |
-0.5 |
| 3 |
16000.0 |
4.32 |
-0.75 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
