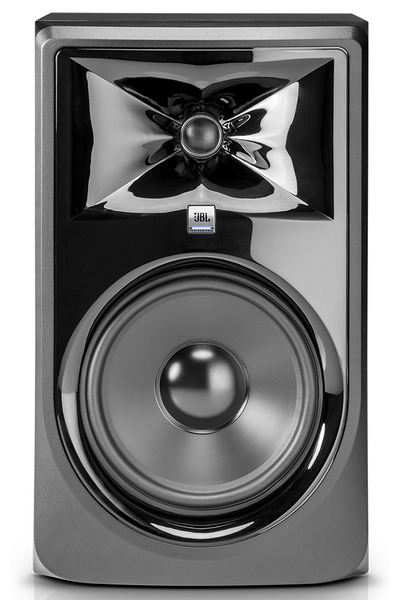

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
-3dB (resp. -6db) point v.s. reference is at 46.9Hz (resp. 42.5Hz).
-
Reference level is normalised to 0.2dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 3.4dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-60.0°, 50.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-40.0°, 20.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.09
and would be 6.97 with a
perfect subwoofer.
- Details:
NBD: ON 0.524,
LW 0.448, SP
0.382, PIR
0.352; SM:
SP0.84,
PIR0.71; LFQ
0.625, LFX 39Hz
- Tonality (Preference) Score is 6.51
with an EQ and would be 8.31 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.379,
LW 0.305, SP
0.259, PIR
0.199; SM:
SP0.967,
PIR0.937; LFQ 0.625, LFX 38Hz
- Link to Original review.
-
Vendor specifications:
- Dispersion: 120° horizontal and 90° vertical.
- Sensitivity 92 dB
- SPL
- Size
- Width 224mm
- Height 361mm
- Depth 282mm
- Weight 6.1kg
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -2.9dB.
|
| Type |
Freq |
Q |
Gain |
| LS |
54.0 |
0.72 |
2.92 |
| PK |
138.0 |
1.34 |
-1.11 |
| PK |
221.0 |
2.71 |
0.53 |
| PK |
418.0 |
2.7 |
0.56 |
| PK |
668.0 |
2.54 |
1.25 |
| PK |
844.0 |
1.66 |
-1.74 |
| PK |
1541.0 |
2.9 |
2.94 |
| PK |
4645.0 |
2.9 |
-1.29 |
| PK |
8766.0 |
1.15 |
-1.59 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -4.1dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
333.0 |
13.0 |
0.6 |
| PK |
405.0 |
10.0 |
0.9 |
| PK |
452.0 |
8.0 |
0.5 |
| PK |
610.0 |
11.0 |
0.8 |
| PK |
707.0 |
20.0 |
-0.8 |
| PK |
917.0 |
4.0 |
-1.3 |
| PK |
1138.0 |
15.0 |
0.8 |
| PK |
1267.0 |
10.0 |
-0.7 |
| PK |
1552.0 |
6.2 |
4.2 |
| PK |
1750.0 |
15.0 |
-0.9 |
| PK |
1930.0 |
22.0 |
1.0 |
| PK |
2282.0 |
11.0 |
2.0 |
| PK |
2500.0 |
18.0 |
-1.1 |
| PK |
2725.0 |
13.0 |
2.7 |
| PK |
3010.0 |
12.0 |
-0.4 |
| PK |
3690.0 |
14.0 |
-0.6 |
| PK |
4800.0 |
3.0 |
-1.1 |
| PK |
8270.0 |
2.0 |
-1.3 |
| PK |
12350.0 |
2.9 |
1.7 |
| PK |
15400.0 |
1.8 |
-1.8 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.5dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
25.0 |
2.14 |
0.25 |
| PK |
40.0 |
2.14 |
0.25 |
| PK |
63.0 |
2.14 |
0.0 |
| PK |
100.0 |
2.14 |
-0.25 |
| PK |
160.0 |
2.14 |
-0.25 |
| PK |
250.0 |
2.14 |
0.0 |
| PK |
400.0 |
2.14 |
0.0 |
| PK |
630.0 |
2.14 |
0.0 |
| PK |
1000.0 |
2.14 |
-0.25 |
| PK |
1600.0 |
2.14 |
0.5 |
| PK |
2500.0 |
2.14 |
0.25 |
| PK |
4000.0 |
2.14 |
-0.25 |
| PK |
6300.0 |
2.14 |
-0.25 |
| PK |
10000.0 |
2.14 |
-0.25 |
| PK |
16000.0 |
2.14 |
-0.25 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.8dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
20.0 |
4.32 |
0.0 |
| PK |
25.0 |
4.32 |
0.25 |
| PK |
31.0 |
4.32 |
0.25 |
| PK |
40.0 |
4.32 |
0.25 |
| PK |
50.0 |
4.32 |
0.25 |
| PK |
63.0 |
4.32 |
0.0 |
| PK |
80.0 |
4.32 |
0.0 |
| PK |
100.0 |
4.32 |
0.0 |
| PK |
125.0 |
4.32 |
-0.25 |
| PK |
160.0 |
4.32 |
0.0 |
| PK |
200.0 |
4.32 |
0.0 |
| PK |
250.0 |
4.32 |
0.0 |
| PK |
315.0 |
4.32 |
0.0 |
| PK |
400.0 |
4.32 |
0.25 |
| PK |
500.0 |
4.32 |
0.0 |
| PK |
630.0 |
4.32 |
0.25 |
| PK |
800.0 |
4.32 |
0.0 |
| PK |
1000.0 |
4.32 |
0.0 |
| PK |
1250.0 |
4.32 |
0.0 |
| PK |
1600.0 |
4.32 |
0.75 |
| PK |
2000.0 |
4.32 |
0.25 |
| PK |
2500.0 |
4.32 |
0.25 |
| PK |
3150.0 |
4.32 |
0.25 |
| PK |
4000.0 |
4.32 |
0.25 |
| PK |
5000.0 |
4.32 |
0.0 |
| PK |
6300.0 |
4.32 |
0.25 |
| PK |
8000.0 |
4.32 |
0.0 |
| PK |
10000.0 |
4.32 |
0.25 |
| PK |
12000.0 |
4.32 |
0.5 |
| PK |
16000.0 |
4.32 |
0.0 |
| PK |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
