What we know about the measurement:
- Quality of the measurement data is
medium.
-

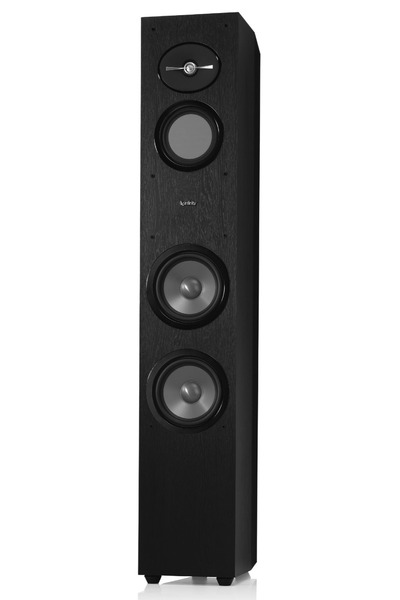

Origin of the data is Infinity.
-
Format of the data is
a scanned image
.
-
-3dB (resp. -6db) point v.s. reference is at 49.5Hz (resp. 38.0Hz).
-
Reference level is normalised to -0.7dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.1dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.88
and would be 7.45 with a
perfect subwoofer.
- Details:
NBD: ON 0.358,
LW 0.293, SP
0.28, PIR
0.234; SM:
SP0.822,
PIR0.588; LFQ
1.362, LFX 33Hz
- Tonality (Preference) Score is 7.19
with an EQ and would be 8.53 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.318,
LW 0.248, SP
0.262, PIR
0.193; SM:
SP0.964,
PIR0.959; LFQ 1.362, LFX 29Hz
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -3.0dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
30.0 |
1.54 |
2.99 |
| PK |
211.0 |
1.38 |
0.66 |
| PK |
369.0 |
2.95 |
1.03 |
| PK |
1887.0 |
2.92 |
1.87 |
| PK |
5347.0 |
1.25 |
-1.23 |
| PK |
9648.0 |
2.76 |
-1.23 |
| PK |
16239.0 |
0.84 |
-1.79 |
|
Download
|
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.6dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
25.0 |
2.14 |
0.5 |
| PK |
40.0 |
2.14 |
0.5 |
| PK |
63.0 |
2.14 |
-0.25 |
| PK |
100.0 |
2.14 |
0.0 |
| PK |
160.0 |
2.14 |
-0.25 |
| PK |
250.0 |
2.14 |
0.0 |
| PK |
400.0 |
2.14 |
0.0 |
| PK |
630.0 |
2.14 |
-0.25 |
| PK |
1000.0 |
2.14 |
-0.25 |
| PK |
1600.0 |
2.14 |
-0.25 |
| PK |
2500.0 |
2.14 |
0.0 |
| PK |
4000.0 |
2.14 |
-0.5 |
| PK |
6300.0 |
2.14 |
-0.5 |
| PK |
10000.0 |
2.14 |
-0.75 |
| PK |
16000.0 |
2.14 |
-0.75 |
|
Download
|
This EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -1.1dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
20.0 |
4.32 |
0.0 |
| PK |
25.0 |
4.32 |
0.75 |
| PK |
31.0 |
4.32 |
0.75 |
| PK |
40.0 |
4.32 |
0.75 |
| PK |
50.0 |
4.32 |
0.75 |
| PK |
63.0 |
4.32 |
-0.25 |
| PK |
80.0 |
4.32 |
0.0 |
| PK |
100.0 |
4.32 |
0.0 |
| PK |
125.0 |
4.32 |
0.0 |
| PK |
160.0 |
4.32 |
0.0 |
| PK |
200.0 |
4.32 |
0.0 |
| PK |
250.0 |
4.32 |
0.0 |
| PK |
315.0 |
4.32 |
-0.25 |
| PK |
400.0 |
4.32 |
0.0 |
| PK |
500.0 |
4.32 |
-0.25 |
| PK |
630.0 |
4.32 |
0.0 |
| PK |
800.0 |
4.32 |
0.0 |
| PK |
1000.0 |
4.32 |
-0.25 |
| PK |
1250.0 |
4.32 |
-0.25 |
| PK |
1600.0 |
4.32 |
0.0 |
| PK |
2000.0 |
4.32 |
0.25 |
| PK |
2500.0 |
4.32 |
0.25 |
| PK |
3150.0 |
4.32 |
0.25 |
| PK |
4000.0 |
4.32 |
-0.25 |
| PK |
5000.0 |
4.32 |
-0.5 |
| PK |
6300.0 |
4.32 |
-0.25 |
| PK |
8000.0 |
4.32 |
-0.25 |
| PK |
10000.0 |
4.32 |
-0.5 |
| PK |
12000.0 |
4.32 |
-0.25 |
| PK |
16000.0 |
4.32 |
-0.5 |
| PK |
20000.0 |
4.32 |
0.0 |
|
Download
|
This EQ is designed for a 31 bands graphical EQ.
EQ
Target v.s. EQ
Histogram of errors
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
Comparison betweens various EQs
|
