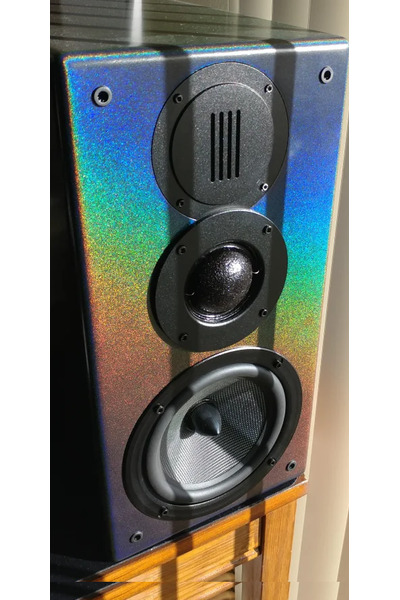

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 86.1dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
-
-3dB (resp. -6db) point v.s. reference is at 55.7Hz (resp. 45.4Hz).
-
Reference level is normalised to 0.3dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.6dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-70.0°, 70.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-20.0°, 20.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.68
and would be 7.63 with a
perfect subwoofer.
- Details:
NBD: ON 0.351,
LW 0.268, SP
0.359, PIR
0.269; SM:
SP0.843,
PIR0.703; LFQ
0.64, LFX 41Hz
- Tonality (Preference) Score is 6.71
with an EQ and would be 8.44 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.328,
LW 0.226, SP
0.32, PIR
0.21; SM:
SP0.952,
PIR0.953; LFQ 0.64, LFX 36Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -3.0dB.
|
| Type |
Freq |
Q |
Gain |
| 5 |
55.0 |
0.31 |
3.0 |
| 3 |
125.0 |
1.22 |
-0.48 |
| 3 |
299.0 |
0.88 |
2.26 |
| 3 |
844.0 |
1.14 |
-1.47 |
| 3 |
1348.0 |
2.34 |
1.73 |
| 3 |
3110.0 |
2.06 |
-1.46 |
| 3 |
4064.0 |
2.42 |
-1.64 |
| 3 |
10020.0 |
1.83 |
-0.74 |
| 3 |
15474.0 |
0.79 |
0.88 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -1.6dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
329.0 |
3.0 |
0.8 |
| 3 |
378.0 |
10.0 |
-1.6 |
| 3 |
450.0 |
20.0 |
-0.9 |
| 3 |
481.0 |
20.0 |
1.1 |
| 3 |
609.0 |
4.12 |
-1.6 |
| 3 |
995.0 |
1.0 |
-3.8 |
| 3 |
1175.0 |
13.0 |
0.8 |
| 3 |
1243.0 |
5.0 |
1.4 |
| 3 |
1405.0 |
12.0 |
1.3 |
| 3 |
1516.0 |
16.0 |
-0.8 |
| 3 |
1640.0 |
19.0 |
0.6 |
| 3 |
1765.0 |
13.0 |
-0.8 |
| 3 |
2808.0 |
1.0 |
0.5 |
| 3 |
3561.0 |
1.047 |
-3.6 |
| 3 |
6020.0 |
10.0 |
0.4 |
| 3 |
6750.0 |
10.0 |
-0.4 |
| 3 |
9280.0 |
7.0 |
-0.4 |
| 3 |
10483.0 |
1.495 |
-3.0 |
| 3 |
12400.0 |
5.8 |
-1.0 |
| 6 |
14400.0 |
1.5772935127949521 |
1.7 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.25 |
| 3 |
40.0 |
2.14 |
0.25 |
| 3 |
63.0 |
2.14 |
0.25 |
| 3 |
100.0 |
2.14 |
-0.25 |
| 3 |
160.0 |
2.14 |
0.0 |
| 3 |
250.0 |
2.14 |
0.25 |
| 3 |
400.0 |
2.14 |
0.25 |
| 3 |
630.0 |
2.14 |
-0.25 |
| 3 |
1000.0 |
2.14 |
0.0 |
| 3 |
1600.0 |
2.14 |
0.0 |
| 3 |
2500.0 |
2.14 |
-0.25 |
| 3 |
4000.0 |
2.14 |
-0.25 |
| 3 |
6300.0 |
2.14 |
0.0 |
| 3 |
10000.0 |
2.14 |
-0.25 |
| 3 |
16000.0 |
2.14 |
0.75 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.5dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.25 |
| 3 |
31.0 |
4.32 |
0.25 |
| 3 |
40.0 |
4.32 |
0.25 |
| 3 |
50.0 |
4.32 |
0.25 |
| 3 |
63.0 |
4.32 |
0.0 |
| 3 |
80.0 |
4.32 |
0.0 |
| 3 |
100.0 |
4.32 |
0.0 |
| 3 |
125.0 |
4.32 |
0.0 |
| 3 |
160.0 |
4.32 |
0.0 |
| 3 |
200.0 |
4.32 |
0.0 |
| 3 |
250.0 |
4.32 |
0.0 |
| 3 |
315.0 |
4.32 |
0.25 |
| 3 |
400.0 |
4.32 |
0.0 |
| 3 |
500.0 |
4.32 |
0.0 |
| 3 |
630.0 |
4.32 |
-0.25 |
| 3 |
800.0 |
4.32 |
0.0 |
| 3 |
1000.0 |
4.32 |
0.0 |
| 3 |
1250.0 |
4.32 |
0.25 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
0.0 |
| 3 |
2500.0 |
4.32 |
-0.25 |
| 3 |
3150.0 |
4.32 |
-0.25 |
| 3 |
4000.0 |
4.32 |
-0.25 |
| 3 |
5000.0 |
4.32 |
0.0 |
| 3 |
6300.0 |
4.32 |
0.0 |
| 3 |
8000.0 |
4.32 |
0.0 |
| 3 |
10000.0 |
4.32 |
0.0 |
| 3 |
12000.0 |
4.32 |
0.0 |
| 3 |
16000.0 |
4.32 |
0.5 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
